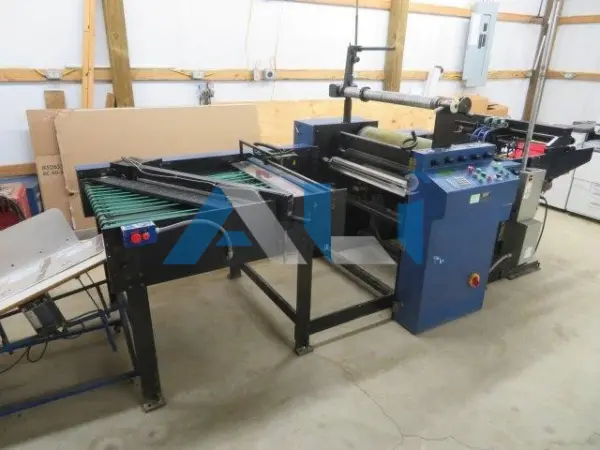

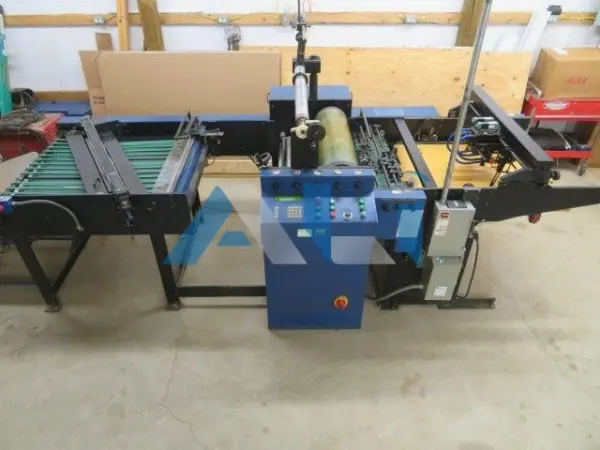

#106334 D&K 3215 High Speed Laminator - Angled-Knife Separator

#106334 D&K 3215 High Speed Laminator - with angled knife separator

• Model: 3215 with Angeled Knife Separator
• Manufacturer: D&K

• Floor Space 5'6" W x 16' L x 6'6" H
• Clearnace 3' non operator side 5' all other sides

• Min Sheet Length 16"
• Max Sheet Length 40"
• Min Sheet Width 9"
• Max Sheet Width 31.5"
• Min Sheet thickness .004"
• Max Sheet thickness .018"
• Max Pile height 28" (working pile height 25")

• Film Type Polyester (PET), polypropylene (OPP), Nylon (Curl Free)
• Min film thickness 1 mil
• Max film thickness 3 mil (OPP), 1.5mil (PET and Curl Free)
• Max roll weight 150lbs
• Max roll diameter 18"
• Max roll width 32"
• Film load times 3 - 5 minutes

• Sheet loading times 10 - 15 minutes
• Machine Warm up Time 10^oF / minute
• Heated roller type 10" damter NT, Duralon coated
• Embossing Chrome coated
• Slitting To Core -- 16" max from one end
• Temperature Range 70^o - 360^o F
• Running Temperature 230^o - 260^o F
• Speed 0 - 200 fpm
• Sheets / HR Estimated
  • 11x17 = 125 fpm (5200)
  • 17x22 = 150 fpm (4900)
  • 20x26 = 175 fpm (4800)
  • 28x30 = 200 fpm (4600)
