#106382 Interlake Stitcher Model 93A 3/4

Interlake Stitcher Model 93A 3/4
ALI ​#106382

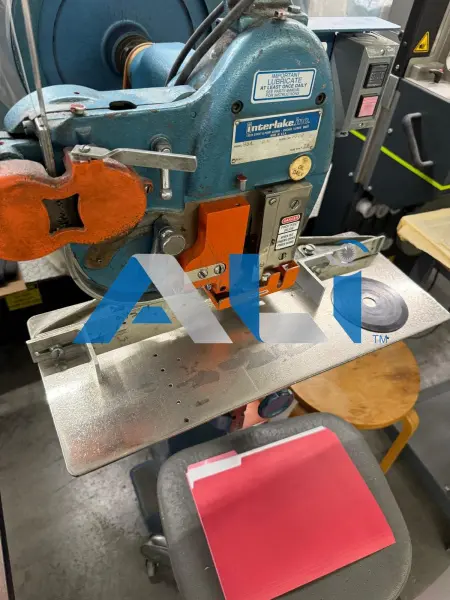

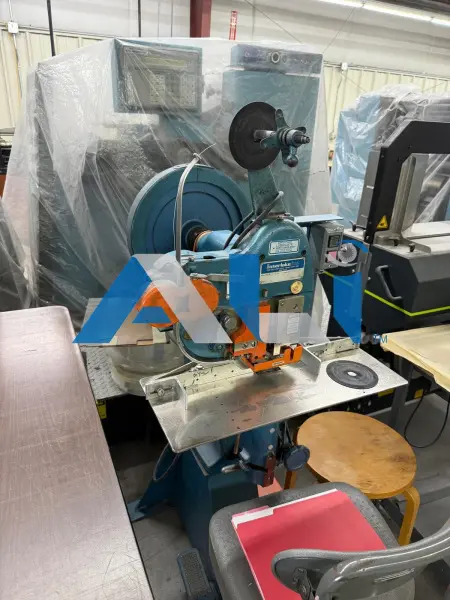

The Interlake S3A 3/4″ Flat Book / Saddle Stitcher (sometimes listed as Model 93A in some catalogs) is a heavy-duty wire stitching machine designed for commercial print finishing and bindery production. It can perform both flat and saddle stitching operations.

Key Specifications

• Max Book Thickness: 3/4 inch
• Maximum Output: Up to 191 stitches per minute
• Wire Sizes: #18 × #20 (flat high carbon) and #20 × #25 (flat gauge)
• Standard Stitch Width: 9/16 inch
• Throat Depth:
  • Flat: ~12 inches
  • Saddle: ~15 inches
• Sheet Capacity: 2 sheets minimum; up to 3/4 inch thickness
• Motor: 1/2 HP (some listings note 1/3 HP)
• Electrical: 115V, 60 Hz, single-phase
• Dimensions:
  • Length: ~31.5 inches
  • Width: ~23.5 inches
  • Height: ~53.5 inches
