#106440 2023 Shanklin A25i and Lantech ST700 Tunnel

ALI Reference #: 106440

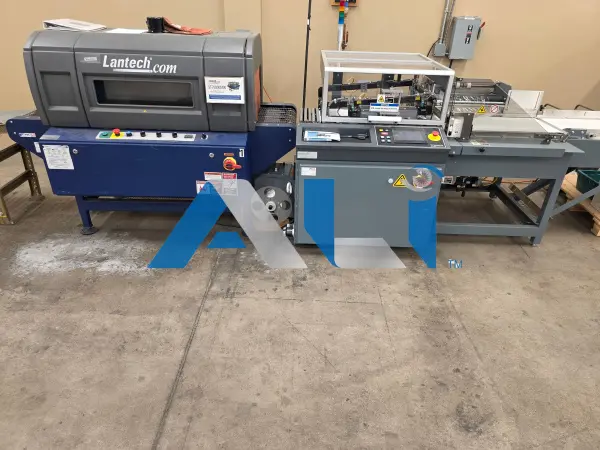

2023 Shanklin A25i and Lantech ST700 Tunnel
ALI# 106440

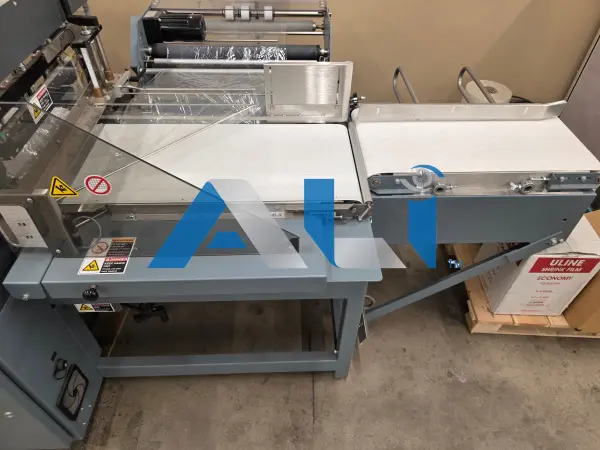

Shanklin A25i
  • Passage size: 10" H × 22" W × 60" L (T-71) or 12" H × 28" W × 60" L (T-81)
  • Tunnel size: 68.5" H × 36" W × 92" L (T-71) or 68.5" H × 42" W × 99" L (T-81)
  • Speed range: 25–150 ft/min
  • Heating: Fin strip heaters, continuous 2" single-piece insulation (no hot/cold spots)
  • Blower: Inverter-rated AC blower motor with balanced blower wheel
  • Controls: Digital temperature control (±2°F tolerance), airflow controls
  • Pairing: Designed for Shanklin Triumph 2 wrappers and other Shanklin automatic systems
  • Construction: Heavy-duty, continuous insulation, optimized airflow for shrink quality

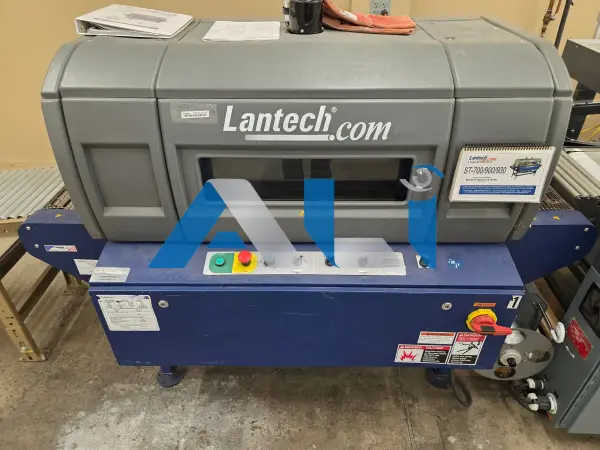

Lantech ST700
  • Passage size: 51" L × 22" W × 12" H
  • Tunnel size: 63" L × 22" W × 12" H
  • Speed range: Up to 90 ft/min (depends on package/film)
  • Heating: 3 zones, each with 3,800W heater and fan
  • Airflow: Multiple fan controls (low/high) for each zone
  • Controls: Single station console with ViewWindow™ for real-time process view, conveyor speed, air velocity, and temperature controls
  • Conveyor: Stainless steel wire belt (glass-filled nylon optional)
  • Power: 208V, 3-phase, 52A
  • Weight: 980 lbs (shipping weight 1,500 lbs)
  • Construction: Heavy-duty industrial components, tough composite covering

Although we strive for accuracy, some equipment details and specifications are difficult to confirm. Descriptions and specifications of the equipment are not warranties and are intended only as a courtesy. Buyer inspection is encouraged and we recommend to cross-check with the manufacturer for any difference between the machine being sold and what is stated in the listing. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise.
