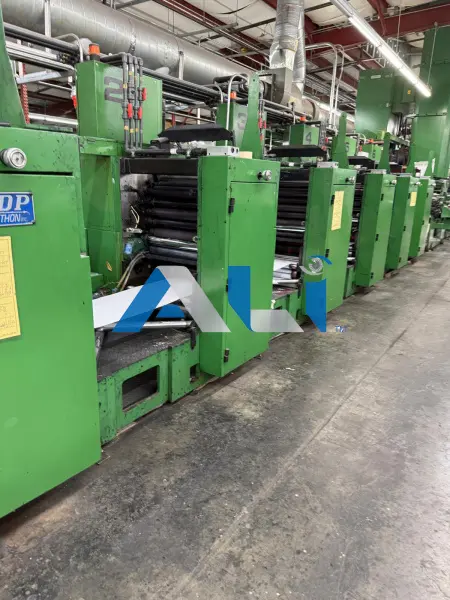

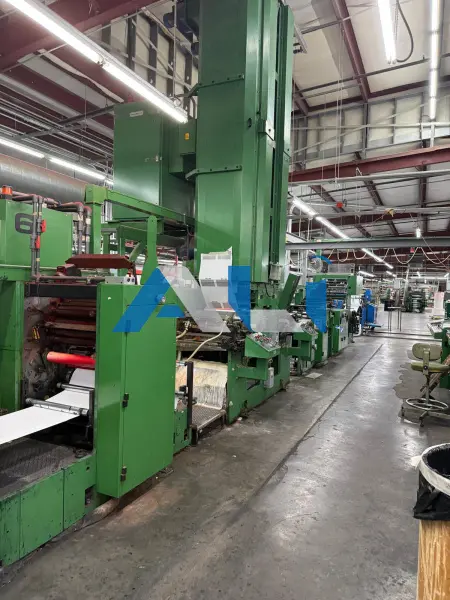

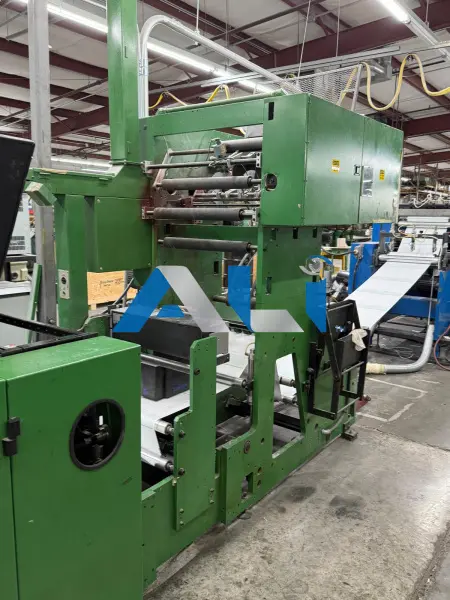

1992 SR200 RDP Variable Size Press

• Speed - Mechanical Drive -50fpm to 1200fpm
• Gear Lubrication - Continuous Oil bath
• Drive Train - Shaft with flexible steel disk couplings at gear boxes
• press Drive - Electric DC Drive
• Max web width - 20 1/2"
• Max print width - 20"
• Cylinder Size - 17", 22", 28"
• Web Break Detectors - Electric eye style mounted over the web
• Frames - 1.25" Steel (2P inside frames)

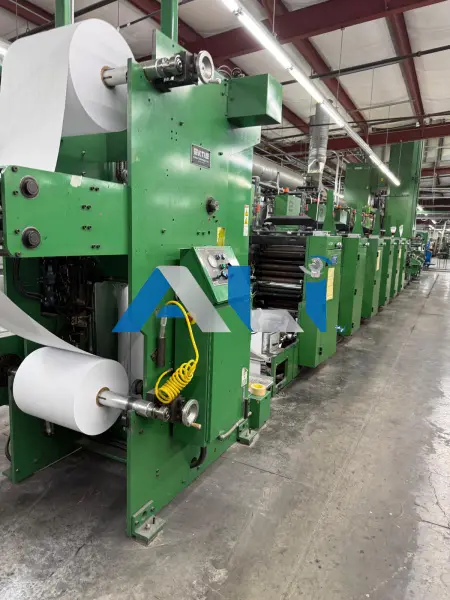

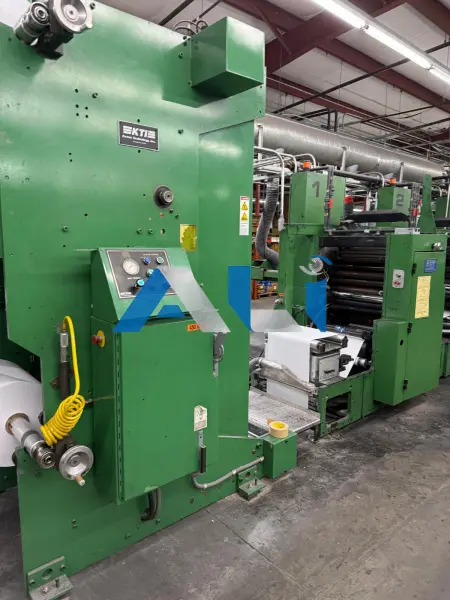

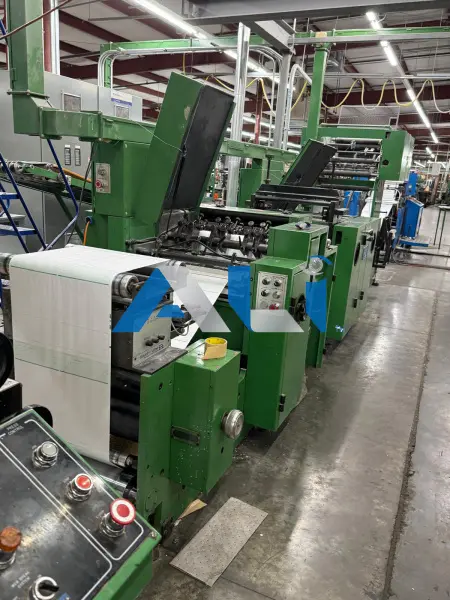

• KTIMode11.S2150.BAutomaticLapSplicer
• Max web Width - 21"
• Max roll Diameter - 50"
• Sized to lift 21 web width (50" diameter)
• Inside core diameter - 3", 5"
• Programmable decurler
• Doyle two-sided web cleaner
• E & L Electronic web guide

• NO. print Towers 6
• Print Insert Sizes - 17", 22", 28" (6 of each size)
• Four form roller system
• Reel-in Blankets
• Motorized Circ. Register with remote control  Motorized plate side lay with remote control  plate cylinder skewing and form roll adjustment  Auxiliary Unit drive motors
• 360 deg circumferential gear boxes
• Centralized, refrigerated recirculator
• Chilled oscillators
• Dahlgren dampening system
• Chilled vibrators (Tri Service Chiller)
• Ink Agitators • Auto ink roll wash-up

• One each Of 17” , 22” and 28” -  used in last print tower
• Two 6” marginal sleeves of each size.

• Turn bars between units I & 2, 2 & 3, and 3 & 4

• Prime UV 400-600 watt curing system
• Prime Smart system control
• Inter-station drying

• IDC Model* SFC-205 (2 coating heads for front & back)
• proctor Strayfteld two-sided Radio Frequency Dryer
• Cylinder sizes - 17", 22", 28"

• BST Promark Eagle two-sided web viewer

• Linehole punching (one)
• Provision for die insert
• Vertical perfs (2 Shafts)
• Double filehole unit (Can substitute magnetic diecut cylinders)
• Two cross perf inserts  (Can substitute magnetic diecut cylinders)

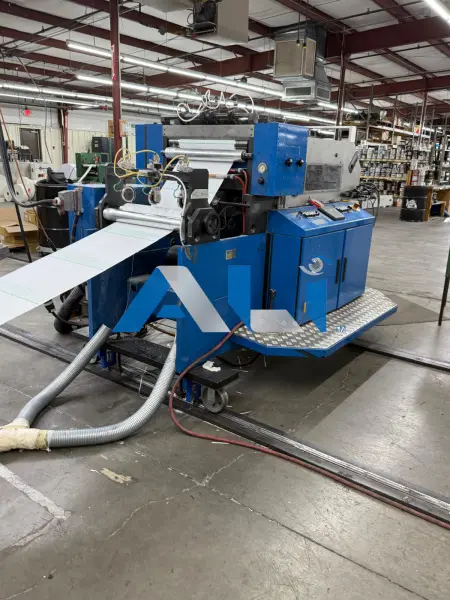

• 50” Rewinder

• Fordyce Folder

• ESS Pantec sheeter (Starwheel type)
