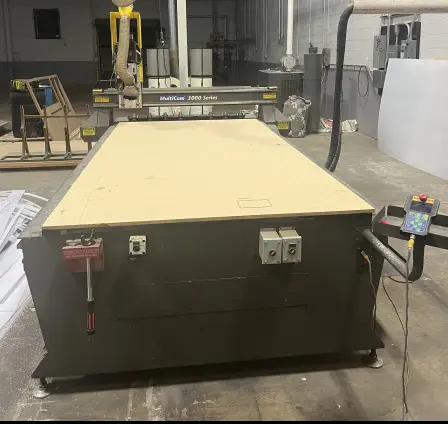

2009 Multicam 3000 Model 3 204R 5' x 10'

ALI Reference #: 105775


2009 Multicam 3000 Model 3 204R 5' x 10'

Mutlicam makes a industry tough machine that has a large table size for various jobs. This is another great offering from Asset Liquidity's offset and bindery equipment.
Specs:
  • ​3000 Series Specs (inches)
  • Model: 3-204R
  • Working Area: 50.5” x 122”
  • Z-Axis Clearance: 6" - Optional 10"
  • Z-Axis Travel: 12"
  • Repeatability: +/- .001"
  • Positional Displacement Accuracy:+/- 0.005" over 10 feet
  • Maximum Cutting Speed: 1,400 ipm *
  • Maximum Rapid Traverse: 2,500 ipm *
  • Drive System X and Y axis: Rack and Pinion
  • Drive System Z axis: Ball Screw
  • Standard Work Surface: 1" Phenolic
  • Length: 183”
  • Width: 95”
  • Height: 77”
  • Weight: 5,170 lbs.
