2011 Heidelberg Varimatrix

ALI Reference #: 105609

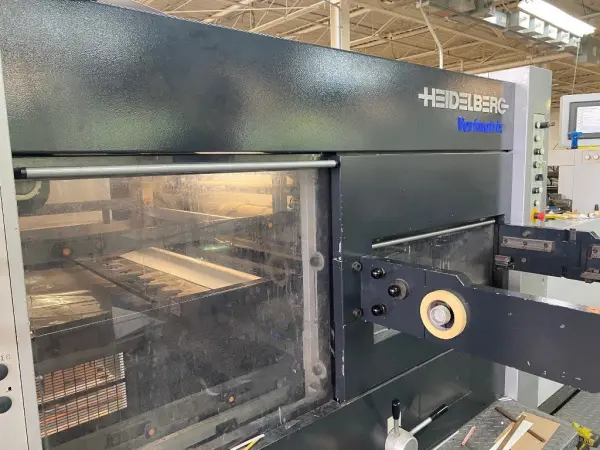

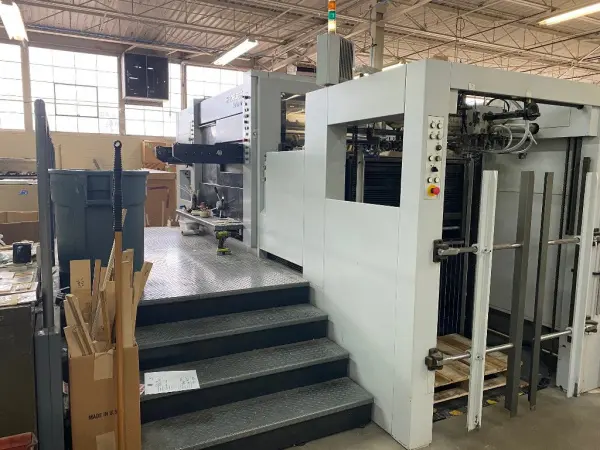

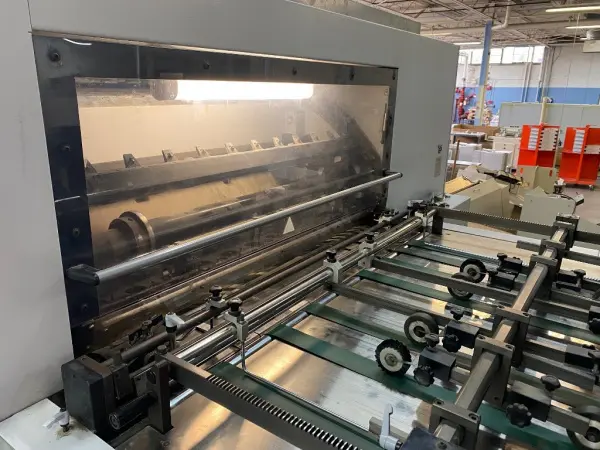

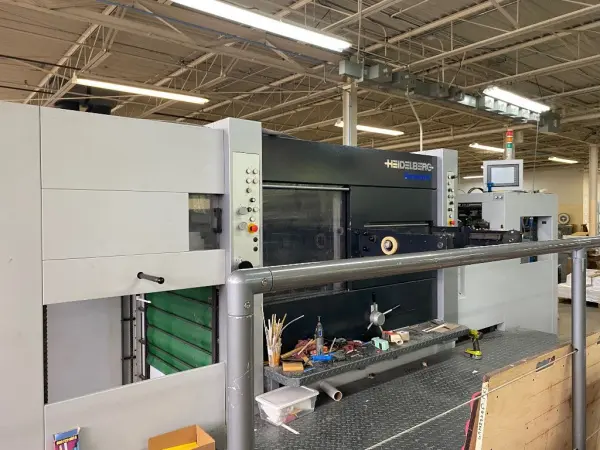

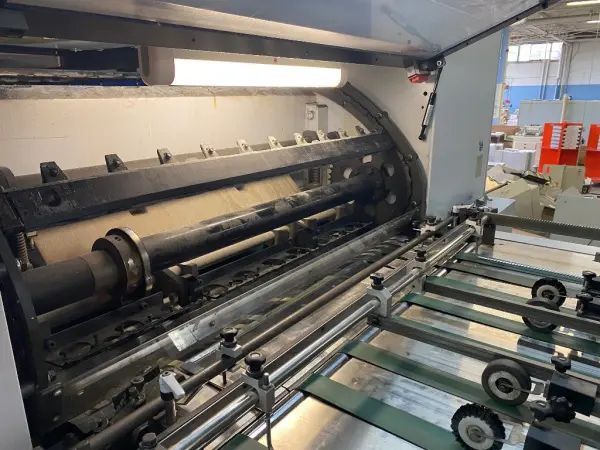

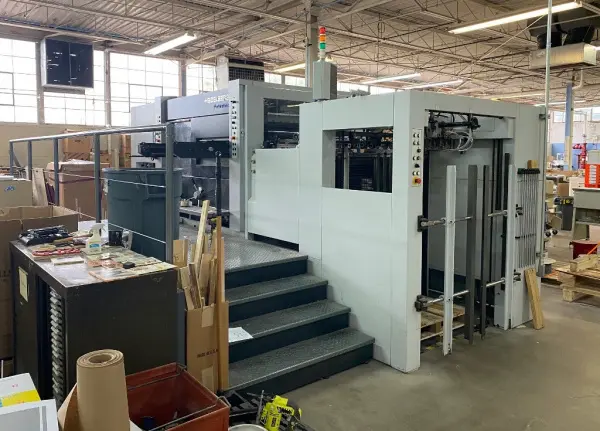

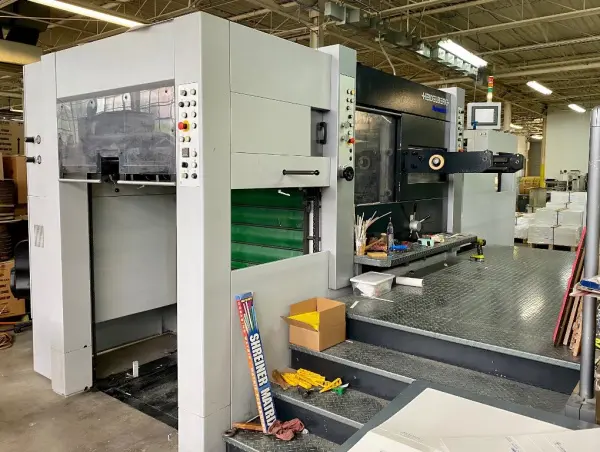

2011 Heidelberg Varimatrix Model 105CS Autoplaten Die Cutter

Great offering for this Heidelberg Die Cutter. This is another of Asset Liquidity's bindery equipment.
Details:
  • 2011 Heidelberg Varimatrix Model 105CS Autoplaten Die Cutter
  • 7.1 million - 6999 Hours

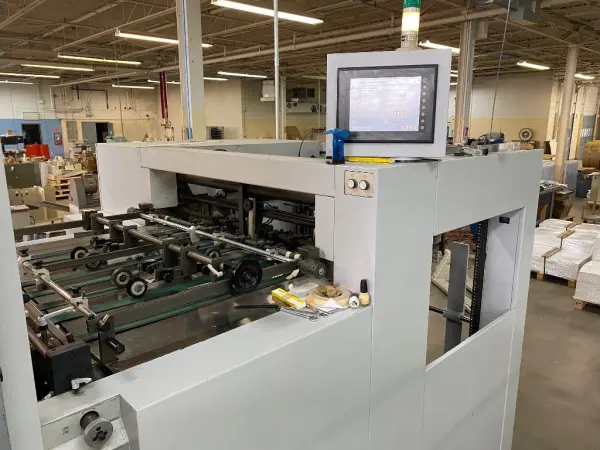

  • Stream Feeder

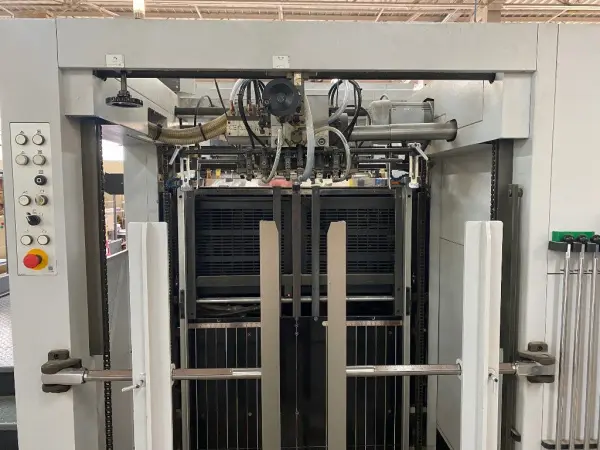

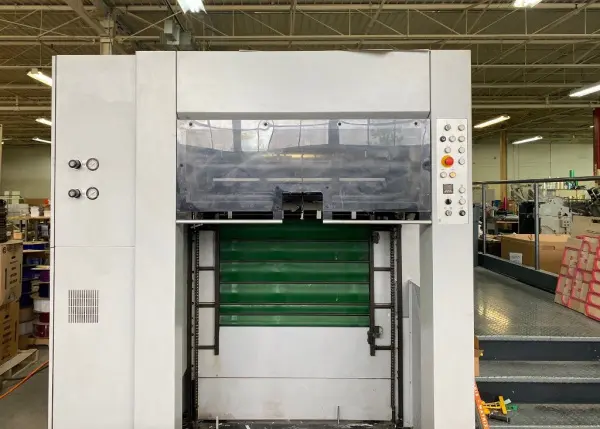

  • Continuous Feed & Delivery
  • Cnterline System
  • 2 Upper and Lower Stripping Racks
  • Make Ready Table
  • Assorted Stripping Pins
  • 1 Chase
  • Max Sheet 29.53 x 41.34 inches
  • Min Sheet 14.57 x 15.75 inches
  • 300 tons cutting pressure
  • 7500 SPH

Specifications:
  • Mfg in Taiwan for Heidelberg
  • Sheet format (max.) 750 x 1,050 millimeters (29.53 x 41.34 inches)
  • Sheet format (min.) 370 x 400 millimeters (14.57 x 15.75 inches)
  • Maximum cutting pressure 300 t/3.0 MN (6,613.86 pounds)
  • Maximum machine speed 7,500 sheets per hour
  • Dimensions of cutting die (max.) 740 x 1,060 millimeters (29.13 x 41.73 inches)
  • Cutting area (net) 727 x 1,050 millimeters (28.62 x 41.34 inches)
  • Gripper margin, adjustable with 13 millimeters (0.512 inch) wood in front of the first knife 10-18 millimeters (0.394 x 0.709 inch)
  • Suitable for the following materials (depending on properties and layout):
  • Paper with a minimum weight of 80 grams per square meter
  • Board or solid board up to a maximum weight of 1,400 grams per square meter
  • Corrugated board up to a total thickness of four millimeters (0.16 inch)
  • Dimensions: Length 25.6’ x Width 12.63’ x Height 8.04
  • Weight of machine: Approximately 34,833 lbs
