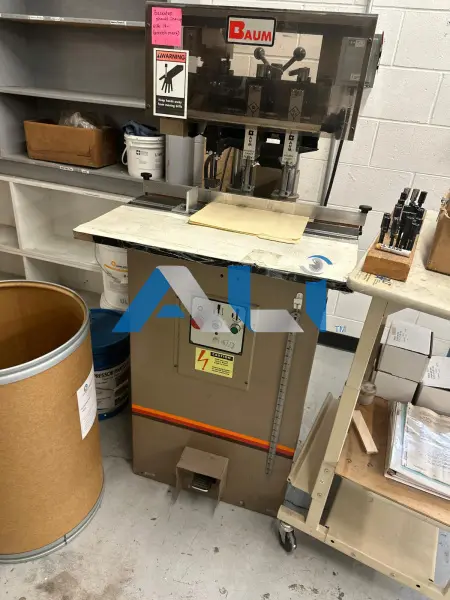

Baum ND 5 Drill
Five hole drill machines can add to any shop where to want to add to what they offer to increase profit and productivity. This is another great offering from Asset Liquidity's bindery and printing equipment.
Details:
- Maximum number of drilling heads: 5
- Drill bit sizes available: 1/8" to 1/2"
- Max drilling capacity: 5 heads with 1/4 drill bits - 2 max.
- 4 heads with 3/8" drill bits - 2" max.
- 3 heads with 1/2" drill bits - 2" max.
- Vertical drill bit adjustment in drill heads: 5/16"
- Maximum center to center distance of heads: 10"
- Minimum center to center distance of heads: 1.5"
- Maximum distance from center of drill to back gage: 5.83"
- Maximum distance between holes (MT): 23.13"
- Min. distance between holes (MT): Adjustable stops: .38"
- Fixed gages: .25"
- Floor space required for ST drill: 36" x 26"
- Floor space required for MT drill: 36" x 49.5"
- Machine height: 59"
- Shipping weight (approximate): 850 lbs.
