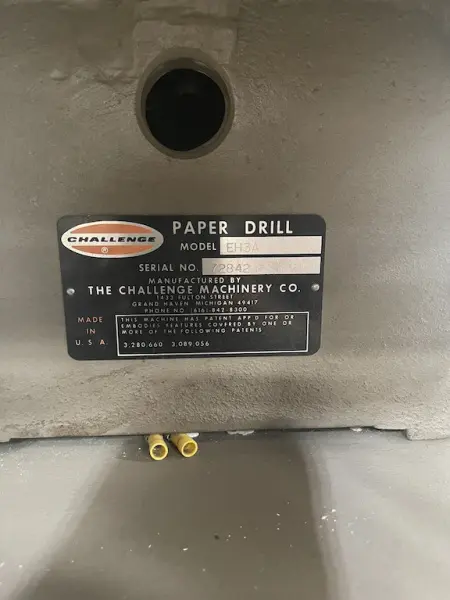

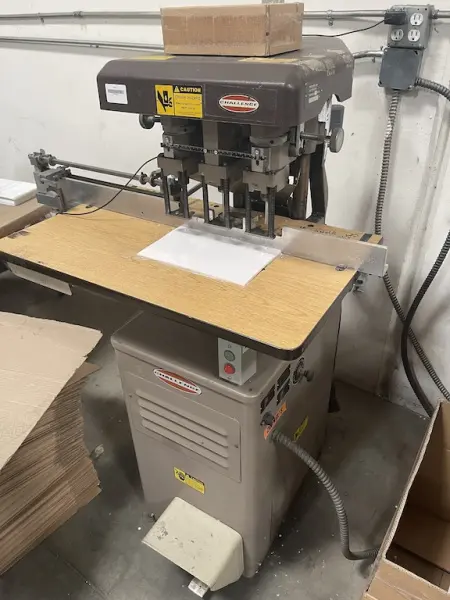

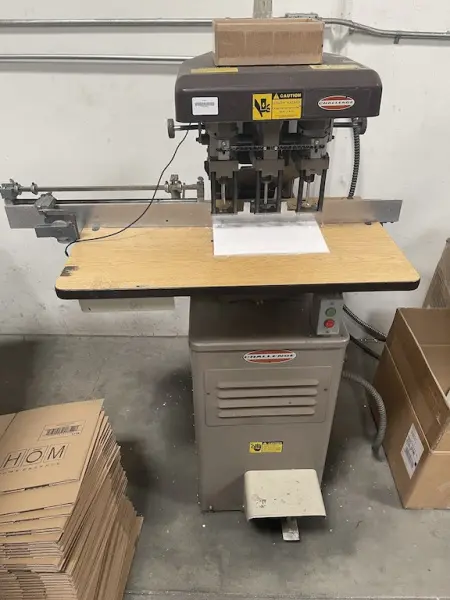

Challenge EH-3A 3 Hole Drill

ALI Reference #: 105320


Challenge EH-3A 3 Hole Drill

Three hole drill machines can add to any shop where to want to add to what they offer to increase profit and productivity.

Details:

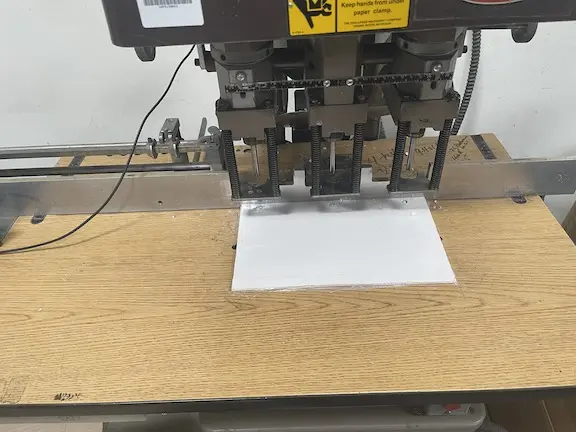

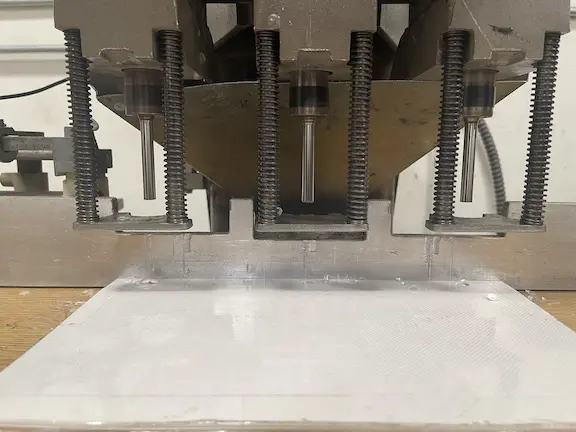

 - Number of Drill Heads 3

 - Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm

 - Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm

 - Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm

 - Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm

 - Maximum Drilling Capacity 2-1/2" / 63 mm

 - Strokes per Minute (adjustable) Up to 18

 - Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm

 - Vertical Adjustment of Individual Heads 1/4" / 6 mm

DIMENSIONS

 - Table Size 19-1/2" x 31-1/2" / 50 x 80 cm

​ - Table Height 37" / 94 cm

 - Overall Height 59-1/4" / 151 cm

 - Floor Space Needed 36" x 41-1/2" / 91 x 105 cm

 - Net Weight (approximate) 520 lbs / 236 kg

 - Shipping Weight (approximate) 570 lbs / 259 kg

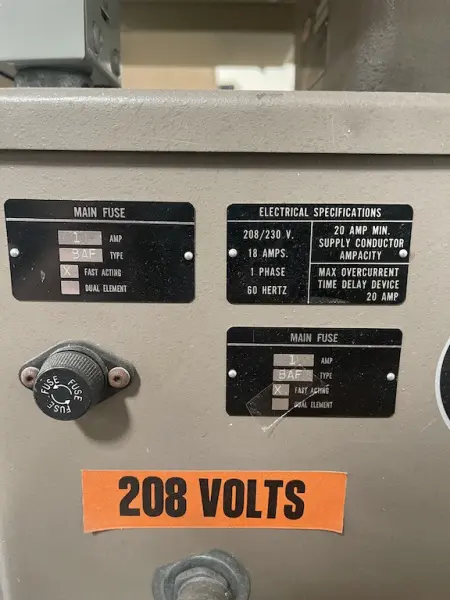

ELECTRICAL

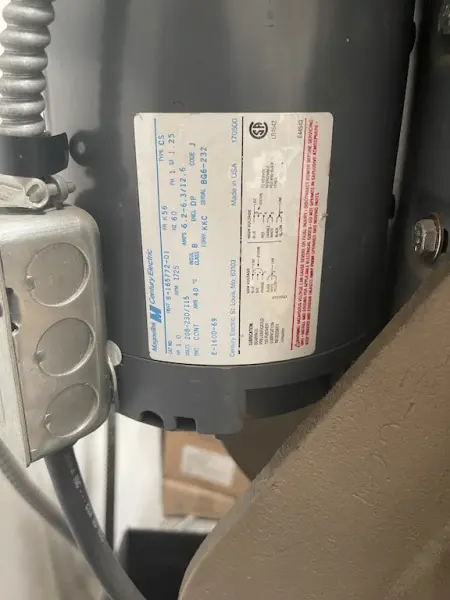

 - ​1 Phase, 60 Hz, AC.  Pump: 1/2 HP.   Spindle Motor: 1 HP.

 - 208 Volts, 18 Amps (service size 30 Amps) or

 - 230 Volts, 17 Amps (service size 30 Amps)
