Horizon BQ 470 PUR with Horizon HT1000V Trimmer and Nordson Durapail

ALI Reference #: 106069

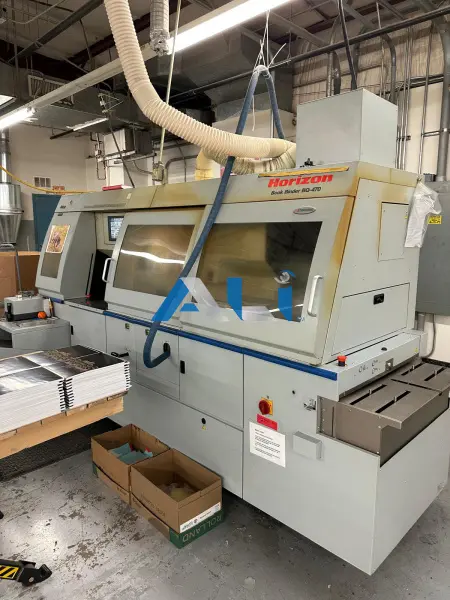

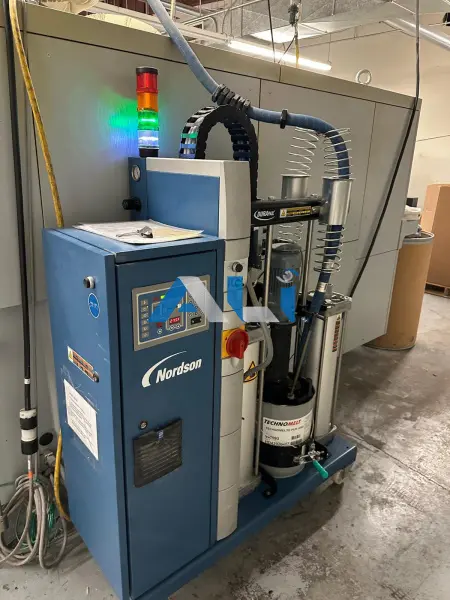

Horizon BQ 470 PUR with Horizon HT1000V Trimmer and Nordson Durapail

Great production perfect binding machine. This is another great offering from Asset Liquidity's offset printing equipment and bindery equipment.
Details:
  • ​BQ470
  • Number of Clamps 4
  • Max book size: 12.59" x 12.59" (320 x 320 mm)
  • Minimum book size:5.71" x 4.14" (145 x 105 mm)
  • Book thickness: .040" to 2.56" (1 to 65 mm)
  • Cover Weight Range Bond Paper 81.4 to 302.4 gsm
  • Cover Weight Range Coated Paper 104.7 to 348.9 gsm
  • Cover Pile Height Max. 150 mm / 5.9”
  • Color touchscreen

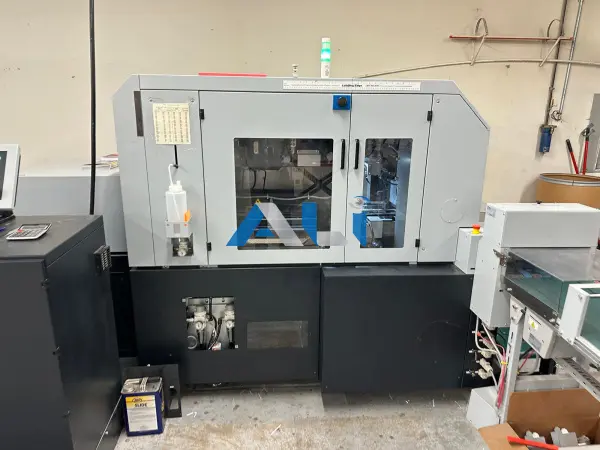

Horizon HT1000V
Untrimmed Book Size:
  • Max. Spine Length 350 x Fore-edge Length 320 mm or 13.780” x 12.600”
  • Min. Spine Length 148 x Fore-edge Length 105 mm or 5.825” x 4.130”

Finished Book Size:
  • Max. Spine Length 340 x Fore-edge Length 300 mm or 13.390” x 11.815”
  • Min. Spine Length 145 x Fore-edge Length 101.6 mm or 5.705” x 4.00”

Trim Height 1 to 65 mm or 0.04” to 2.560”
