Kluge 52 EHD

ALI Reference #: 105614

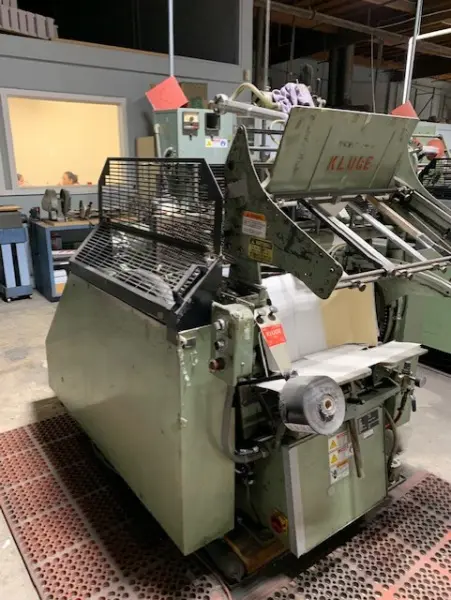

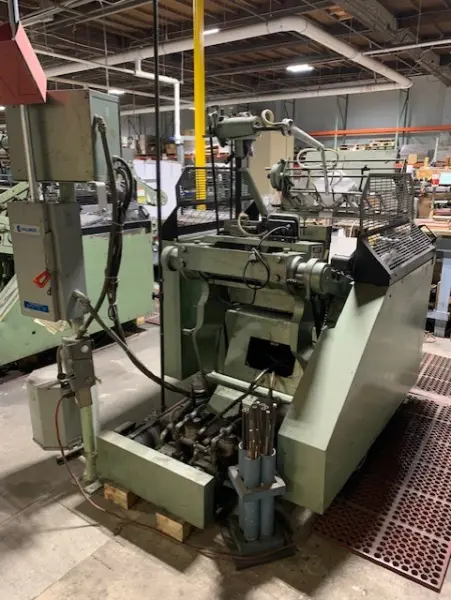

Kluge 52 EHD

Great machine that has been upgraded with auto brake system and foil equipped machine. This is another great offering from Asset Liquidity's bindery and printing equipment.
Details:
  • ​Model: 52 EHD
  • Auto Brake System
  • Platen size 14″ x 22″ 356 x 559 mm
  • Minimum sheet size 4″ x 5″ 102 x 127 mm
  • Maximum sheet size* 17″ x 24.75″ 431 x 628 mm
  • Magazine Capacity 14″” 356 mm
  • Delivery Capacity 14″ 356 mm
  • Air 90 psi @ 10cfm
  • Stock range Onion Skin to .200″ board
  • Inside Chase Dimensions 14″ x 22″ 356 x 559 mm
  • Outside Chase Dimensions 16.25″ x 23.5″ 413 x 597 mm
  • Main and Back Shaft Diameter 4.375″ 111 mm
  • Maximum operating speed 3,300 iph
  • Machine power required 3 h.p., A.C. 230/460 volt, 3 phase, 1800 rpm, 60 cycle
  • Machine dimensions 74″ x 50″ x 68″ 1880 x 1270 x 1727 mm
  • Net weight (approx.) 4400 lbs 1996 kg
  • Total weight (approx.) 5000 lbs 2268 kg
