Lauda Ultracool UC-0240

ALI Reference #: 106259

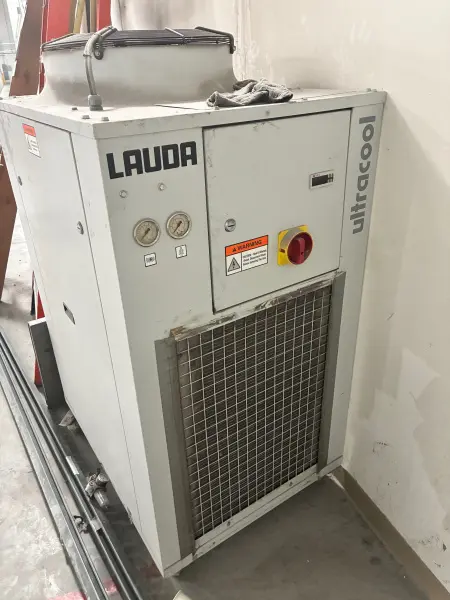

Lauda Ultracool UC-0240

Compact chiller machine, this is a great offering from Asset Liquidiy's bindery and offset printing equipment
details:
  • Ultracool UC-0240 SP
  • Working temperature min.: -5 °C
  •  Working temperature max. 25 °C
  • Ambient temperature min. -15 °C
  • Ambient temperature max. 50 °C
  • Temperature stability 2 ±K
  • Cooling output at 25°C water outlet temperature 37.3 kW
  • Cooling output at 20°C water outlet temperature 34.6 kW
  • Cooling output at 15°C water outlet temperature 30.3 kW
  • Cooling output at 10°C water outlet temperature 26.3 kW
  • Cooling output at 5°C water outlet temperature 22.3 kW
  • Cooling output at 0°C water outlet temperature 18.2 kW
  • Cooling output at -5°C water outlet temperature 14.5 kW
  • Number of refrigeration circuits 1
  • Application external
  • Power consumption 8 kW
  • Pump pressure max. 4.2 bar
  • Pump pressure nominal 2.7 bar
  • Pump flow max. (pressure) 130 L/min
  • Pump flow nominal 84 L/min
  • Pump connection thread HT DN25
  • Volume water reservoir 100 L
  • Dimensions (WxDxH) in mm 715x945x1490
  • Noise level 57.5 dB(A)
  • Max. fuse 40 A
