OCE Arizona 460GT 4C

ALI Reference #: 105478

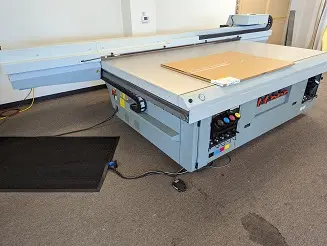

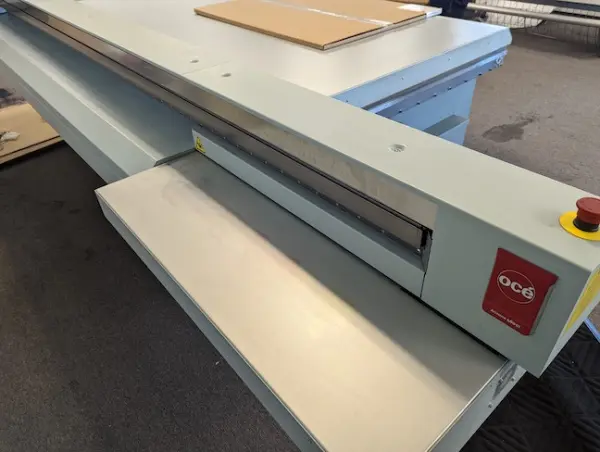

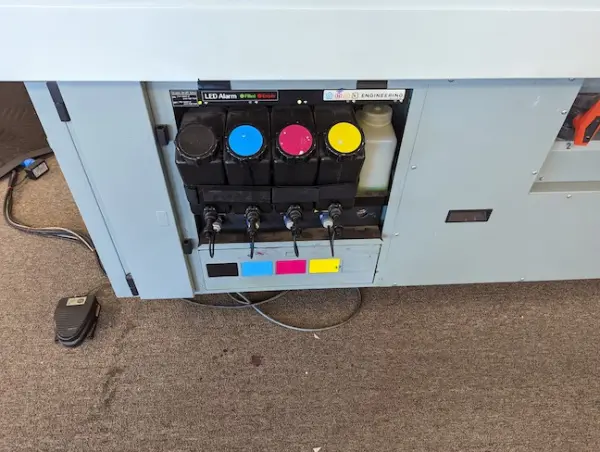

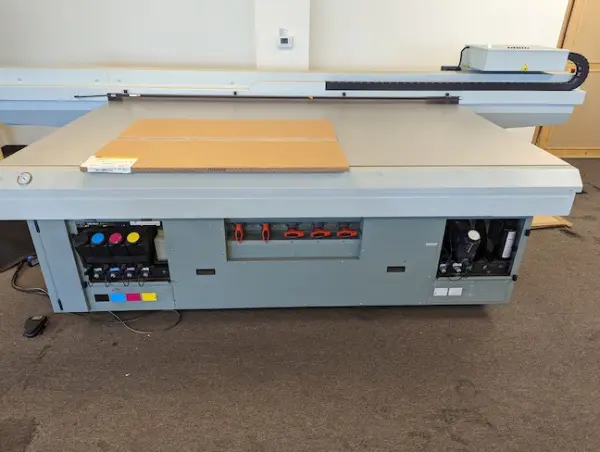

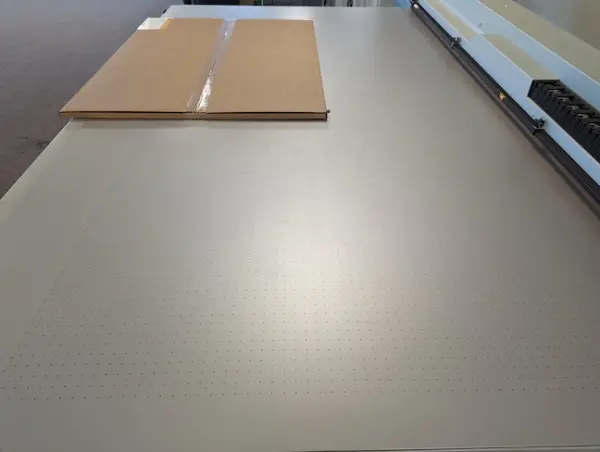

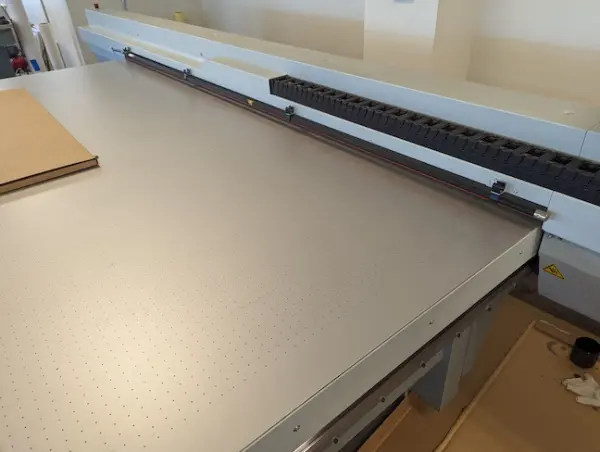

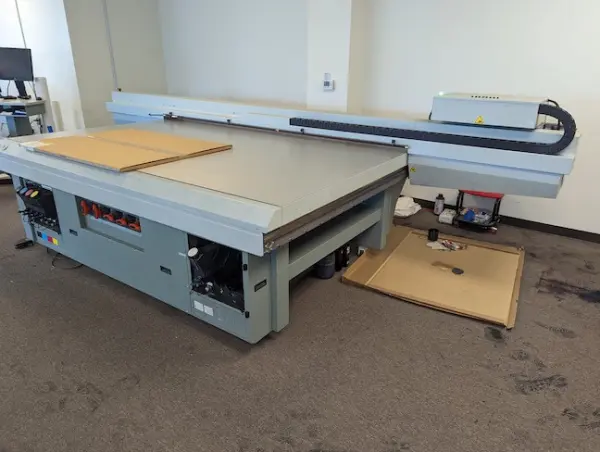

2014 OCE Arizona 460GT 4C

OCE 4 color flat bed printer has many different applications that it can be used for. This is another great offering from Asset Liquidity's printing and bindery equiment.
OCE Details:
Rigid media
Media size 49.2" × 98.4" × 1.89" (1.25 m × 2.5 m × 48 mm)
Print area 49.6" × 98.8" (1.26 m × 2.51 m)
Edge-to-edge printing (full bleed)
Roll Media Option
Roll width 36" to 86.6" (0.9 m to 2.2 m)
Print width 86.2" (2.19 m) maximum
Roll diameter Up to 9.45" (240 mm)
Core inner diameter 3" (76.2 mm)
Roll mass Up to 110 lbs. (50 kg), width dependent
Media winding direction (input) Print side in or out

Geometric Accuracy Measured over Max error
Print width 2.5 m ±0.8 mm
Print length 1.25 m ±0.4 mm
Line straightness/width 2.5 m 0.7 mm
Line straightness/length 1.25 m 0.7 mm
Diagonal error 1.25 × 2.5 m 1.0 mm

Software
Image processing ONYX® Thrive™ Océ Edition print workflow software or
ONYX ProductionHouse™ (version X10 or greater) Océ Edition RIP software
Environmental Data
Power requirements 2×60 Hz, 200 to 240 VAC, single phase, 16A
Connectivity 100/1000Base-T
Temperature 64˚ to 86˚ F (18˚ to 30˚ C)
RH 30–70%, not condensing
(certain media may require a higher RH operating range)
Size & Weight
Printer only 183.5" × 78.7" (4.66 m × 2.0 m), 1,709 lbs. (775 kg)
Printer + roll media option 183.5" × 90.6" (4.66 m × 2.3 m), 2,260 lbs. (1,025 kg)
Table height 34.6" (0.88 m)
Overall height 51.2" (1.3 m
