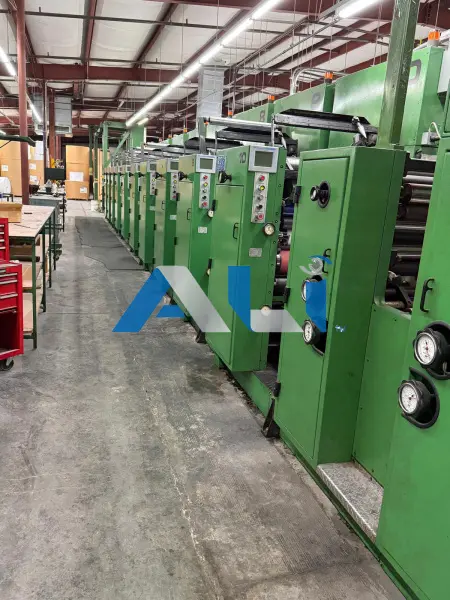

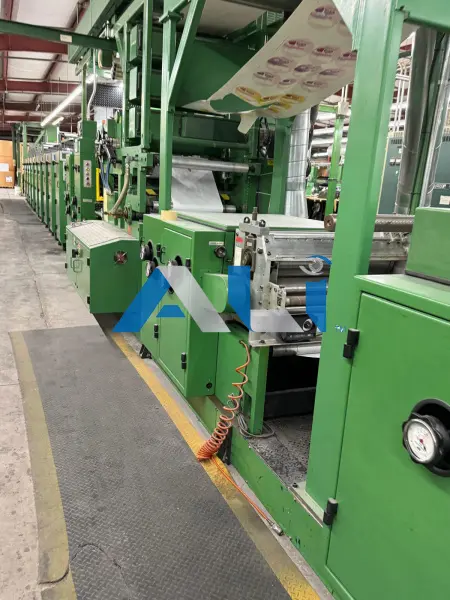

RDP 260 10 Color Scratch Off Press 22” x 26 ½” web width

ALI Reference #: 106357

’92 / ’96 / 2012 / 2013 RDP 260 10 Color Scratch Off Press
22” x 26 ½”
Press was used for Presser Sealer Mailers, Lottery Scratch Offs, Number Coupons, Postcards and can be used for more.

Originally 1992 Purchased with 4 units
In 1996 4 original units rebuilt with UV. 6 more units were added for 10 units with UV. Also installed in 1996 was a applying re-moist, scratch off, and varnish, as well as UV and RF drying capabilities.
2012 Hot air drying was added for aqueous coating.
2013 two sided silicone applicator added.

General
  • Speed - Mechanical Drive -50fpm to 1500fpm
  • Gear Lubrication - Continuous oil bath   Drive Train - Tubular drive shaft with flexible steel disk couplings at gear boxes.
  • Press Drive - Electric DC Drive 150 HP
  • Max web width - 26 1/2"
  • Max print width - 26"
  • Print cylinder circumference - 22"   Web Break Detectors - Electric eye style mounted over the web   ET web guide
  • Frames - 2" thick cast iron (34" inside frames)

Unwind
  • Martin Model EC Plus- 1526 Automatic Splicer
  • Max splicing speed - 1500fpm
  • Max web width - 26 1/2"
  • Max roll weight - 1800 lbs
  • Max roll diameter - 52"
  • Two pneumatic core shafts (3", 5" dia)
  • Web Cleaner
  • Doyle Web Cleaner

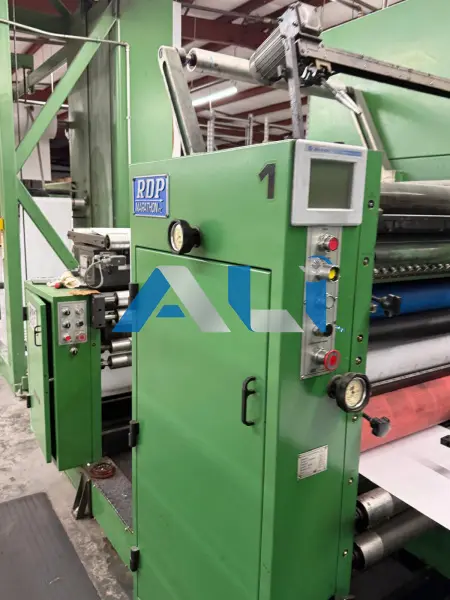

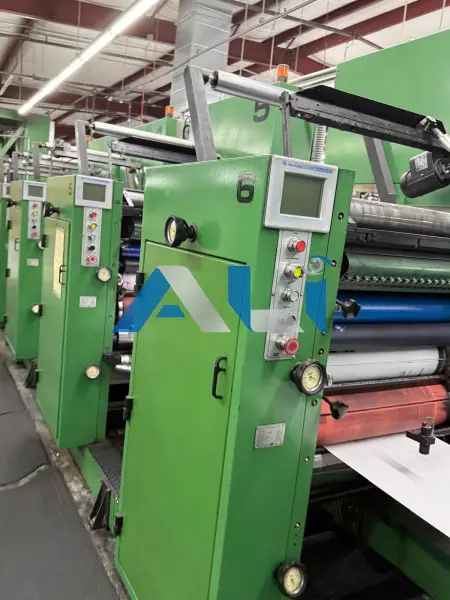

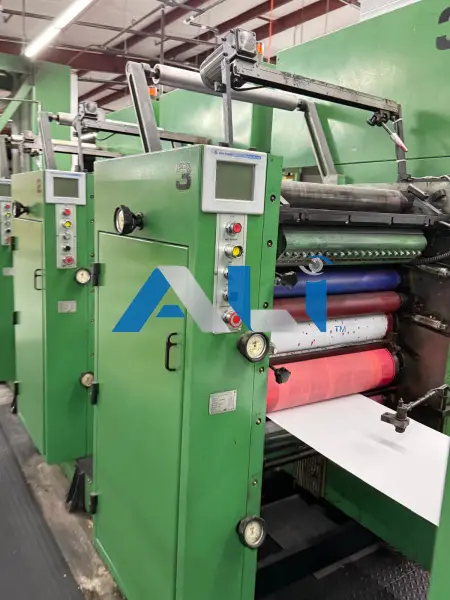

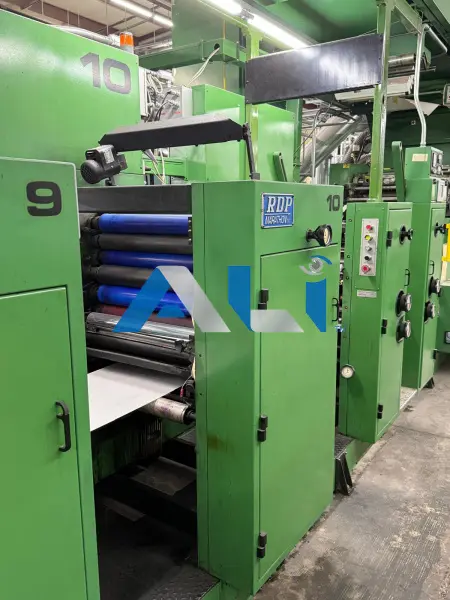

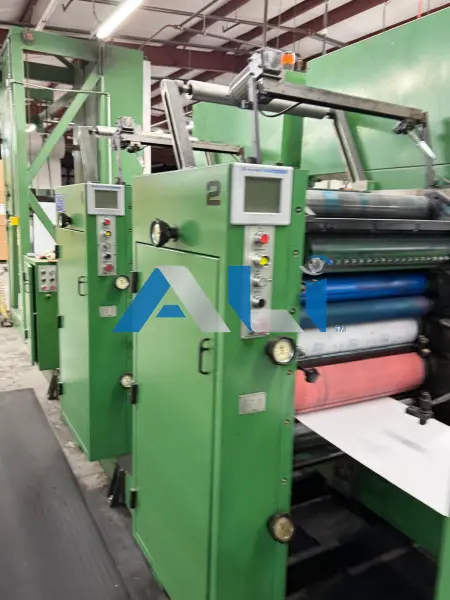

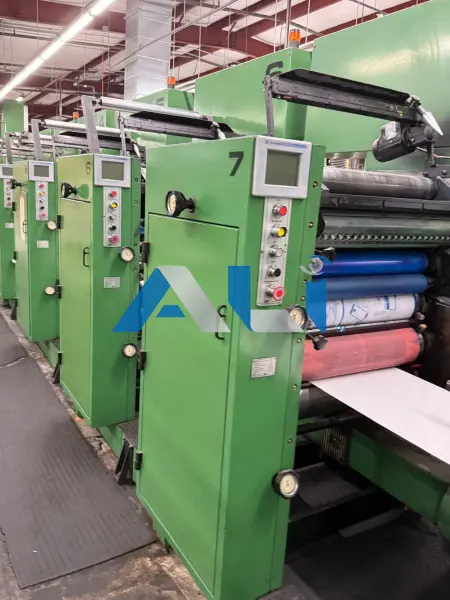

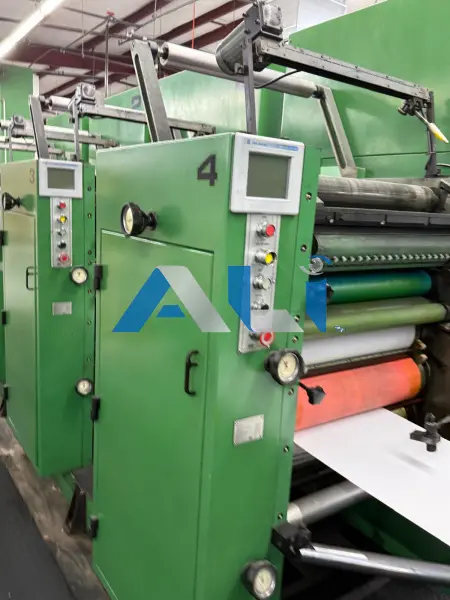

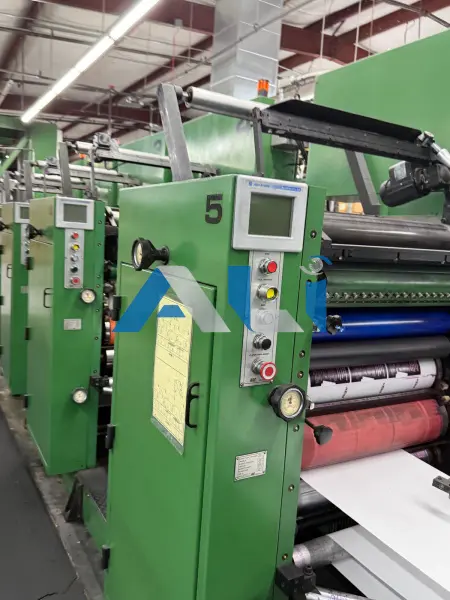

Print Units

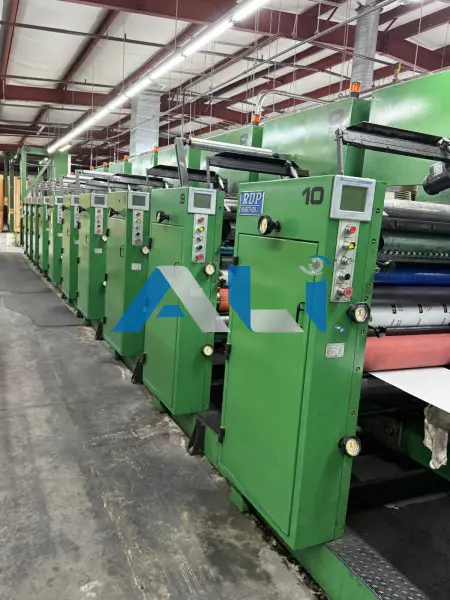

  • No. Units - 10
  • Reel-in Blankets

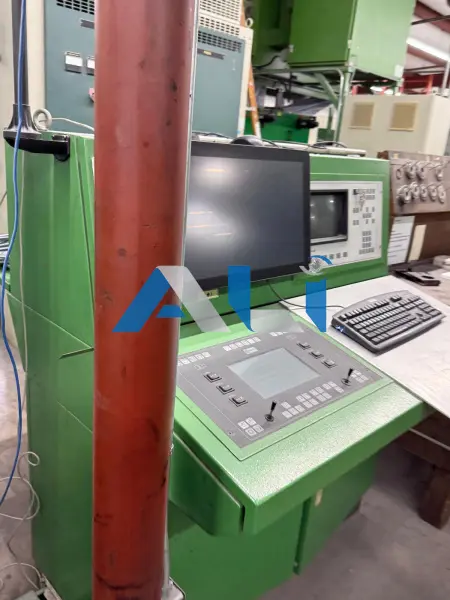

  • Motorized Circ. Register with remote control
  • Motorized plate side lay with remote control
  • Plate cylinder skewing and form roll adjustment
  • Auxiliary Unit drive motors
  • 360 deg circumferential gear boxes
  • Dahlgren dampening system
  • Master Flo SFIOO Central Refrigerated circulator for dampening (10 units)
  • Chilled vibrators each unit (Master Flo Chiller)   Ink Agitators

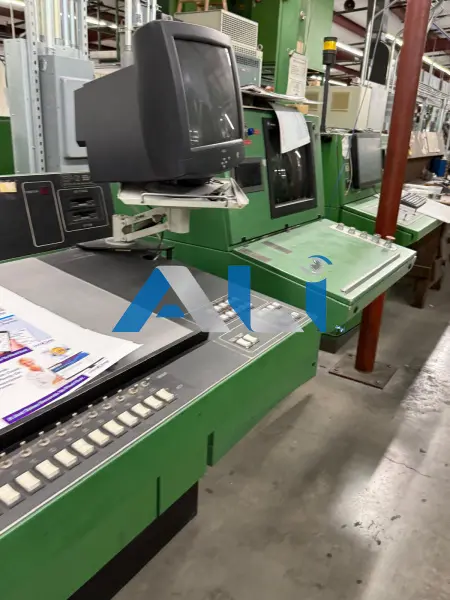

  • EPG motorized ink key controls with operator console   Auto ink roll wash-up

Back Printing
  • Print units 1-4 are reversible
  • Hockey sticks on print units 1-6, 9
  • Turn bars between units 4-5, 5-6

UV Dryers
  • Prime UV curing system
  • Prime Smart system control
  • Three units for positioning after unit l, 4, 5 or 1

Other In-Line Features
  • Double numbering unit (constructed for arabic numbering, barcoding or marginals)
  • IDC combination remoist / scratchoff / varnish unit
  • Prime UV and Proctor Strayfield model SW 25/76 RF dryer for above unit   Double filehole unit
  • DK Hart die cutter with rewind
  • Processing unit inc. linehole punching, vertical perfs (3 shafts) and two cross perf cylinders

ADDITIONS
  • In-Line Coating Equipment Additions
  • Megtec Silicone Applicator (Added June 2012)
  • ASI Hot Air Drying System for Aqueous Coating
  • (Added June 2012)
  • Modified Silicone Applicator to 2 Sided (Added February 2013)
  • Register Control
  • Electromat auto register and cut-off control
  • Electromat inspection system for two-sided viewing

Folder
  • Fordyce VS 1326 single stream
  • Max web width - 26 1/2"

Sheeter
  • Egan (John Brown) Model VB1026LC Sheeter

Batcher Stacker
  • Date 3/31/92
  • Retrofit for 44" pile (Added November 2012)

Rewinder
  • WTI Turret Rewinder (Mod. No. 50/26.5/1200)
