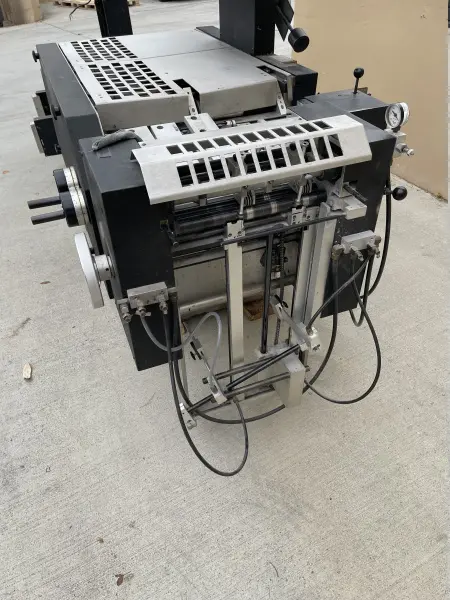

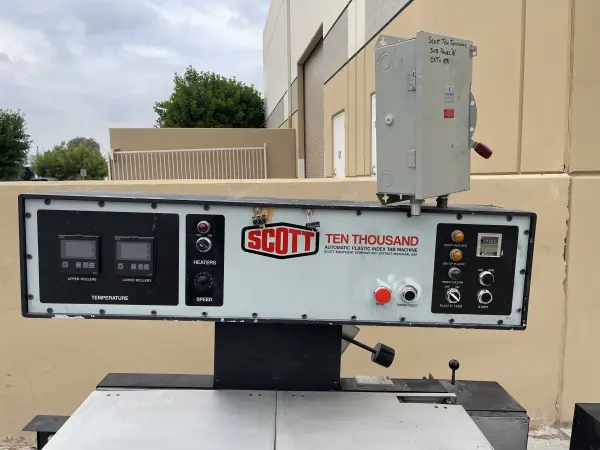

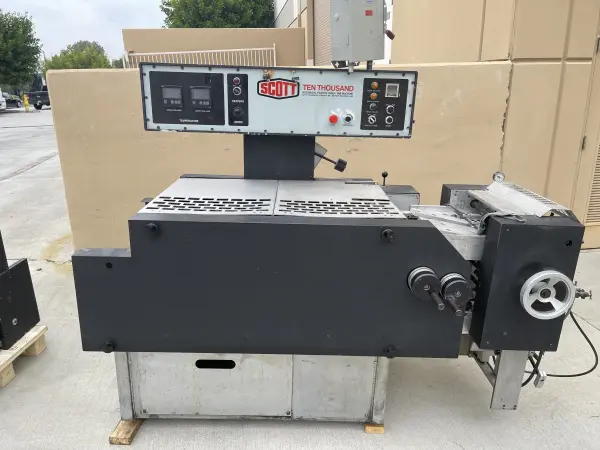

Scott 10000 Automated Platic Index Tab Machine

ALI Reference #: 105249


Scott 10000 Automated Platic Index Tab Machine


This is a great addition to any print shop with max sheet size of fourteen inches by thirteen inches. This is a versatile machine to help increase productivity.

Details:

  • Scott 10,000 plastic index tabs
  • Sheet Size Maximum: 14-3/4" x 13-1/2" (381 mm x 304.8) Minimum: 5" x 4-3/8" (127 mm x 111.1 mm) Binding Side Listed First
  • Plastic Size Maximum: 5-1/2" (139.7 mm) Minimum: 1" (25.4 mm)
  • Tab Cut Size Maximum: 5" (127 mm) Minimum: 1/2" (12.7 mm)
  • Standard Knife Sizes 1/4", 3/8", 1/2", 5/8", 3/4" (6.3mm, 9.5mm, 12.7mm, 15.9mm, 19.1mm)
  • Paper Load Approximately 2,000 sheets
  • Motor 2 hp.
  • Electrical Requirement 40 amp, 220 V three phase, 50 or 60hz
  • Ball Bearings or Bushings on all moving parts
  • Lubrication Fully Automated

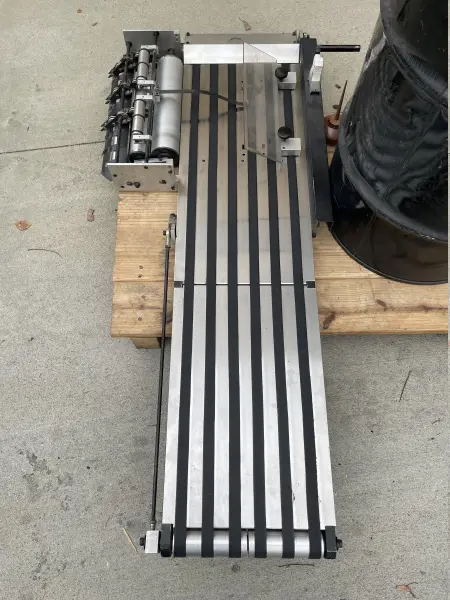

  • Floor Space Required 101" x 198" (2565.4 mm x 5029.2 mm) w/ conveyor
  • Dimensions Length: 126" (3200.4 mm) includes Conveyor Width: 48" (1219.2 mm) 77" (1955.8 mm) includes Conveyor Height: 69" (1752.6 mm)
  • Shipping Weight 3,325 lbs. (1,511.36 kg)
