Canon 660 XT Flatbed Printer

ALI Reference #: 105858

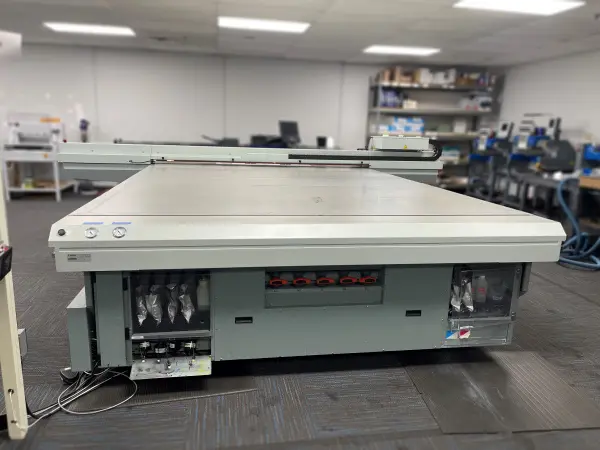

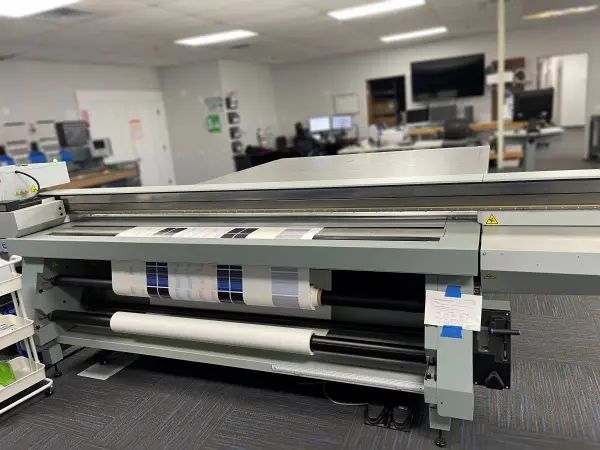

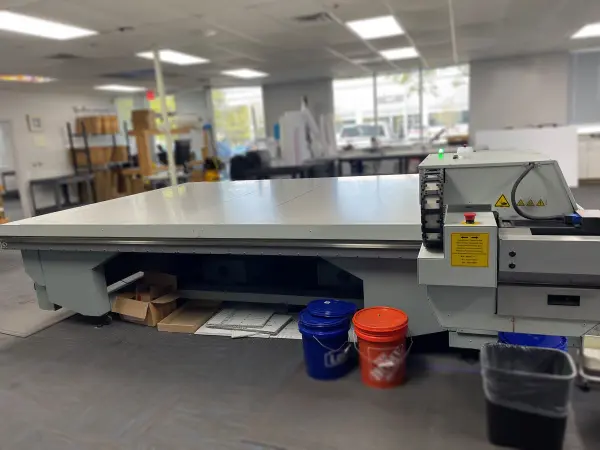

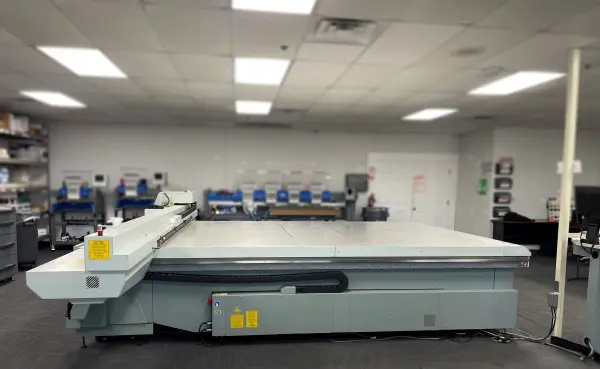

Canon 660 XT Flatbed Printer

Canon flat bed printer has many different applications that it can be used for. This is another great offering from Asset Liquidity's printing and bindery equiment.
Specification:
  • Media size: 98.4" × 120" × 2.0" (2.5 m × 3.05 m × 50.8 mm)
  • Print area: 98.8" × 120.5" (2.51 m × 3.06 m), edge-to-edge printing (full bleed)

  • Roll width: 36" to 86.6" (0.9 m to 2.2 m)
  • Print width: 86.2" (2.19 m) maximum
  • Roll diameter: Up to 9.45" (240 mm)
  • Core inner diameter: 3" (76.2 mm)
  • Roll mass Up to 110 lbs. (50 kg), width independent
  • Media winding direction (input): Print side in or out

Size & Weight
  • Printer only: 183.5" × 150.8" (4.66 m × 3.83 m), 3,582 lbs. (1,625 kg)
  • Printer + roll media option: 183.5" × 162.2" (4.66 m × 4.12 m), 4,137 lbs. (1,875 kg)
  • Table height: 34.6" (0.88 m)
  • Overall height: 51.2" (1.3 m)

Image quality: 6-42 picoliters resulting in near-photographic image quality. Text as small as 6-pt. in size.
Writing technology: Piezoelectric inkjet using Océ VariaDot imaging technology; 2 x 636 nozzle printheads per channel, 7,632 total.
Ink system: Black, Cyan, Magenta and Yellow UV curable inks packaged in two liter, quick-exchange ink bags.
White and Varnish UV curable inks packaged in one liter, quick-exchange ink bags
System design: True flatbed architecture for printing to rigid media or objects. Roll Media Option for flexible media.
