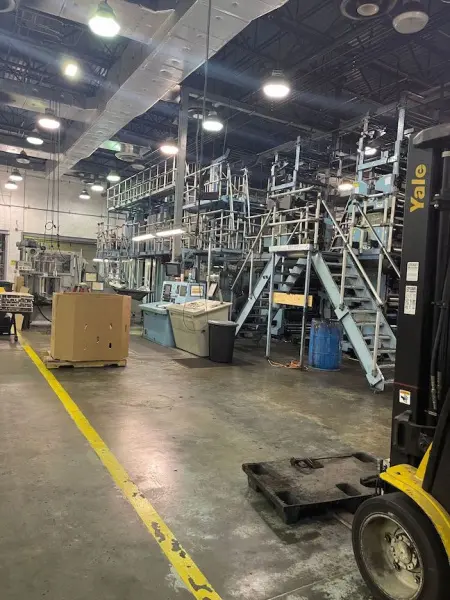

DGM 440 4 highs and 1-430 folder Web Press

ALI Reference #: 105526


DGM 440 4 highs and 1-430 folder Web Press

Great addition to Asset Liquidity's Web Press printing presses that has a web width of 36" and a cutoff at 22 3/4" makes this a versatile machine.
Details:
2-DGM440 4 highs and 1-430 folder with all current UV equipment
Web width - 36”
Cut off - 22 3/4"
max bleed of 22”
Brush Dampening

Both towers have brush dampening.
Both towers have three form rollers.
Both towers have GMI ink system with color desk Yes - both
Towers are outfitted with UV lamps
The towers currently have QTI Multicam cameras.

No- The folder does not have double parallel fold, but does have the cross head perf
1.2-440 4/highs
2 towers of 440 (22.75” cutoff and max width of 36”) with GMI remote inking, brush dampening

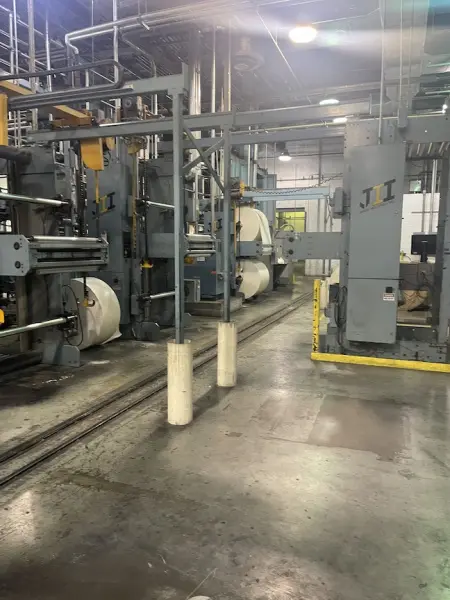

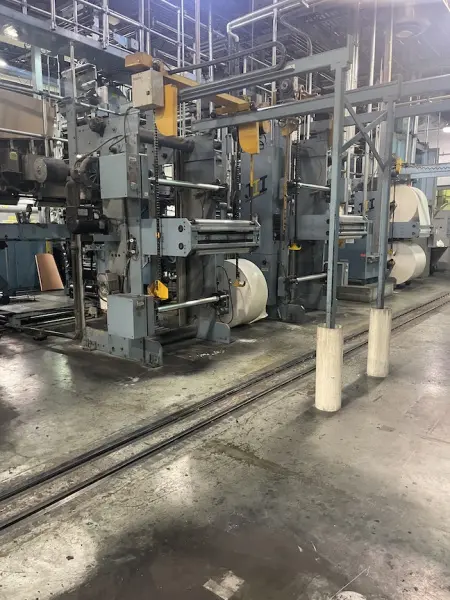

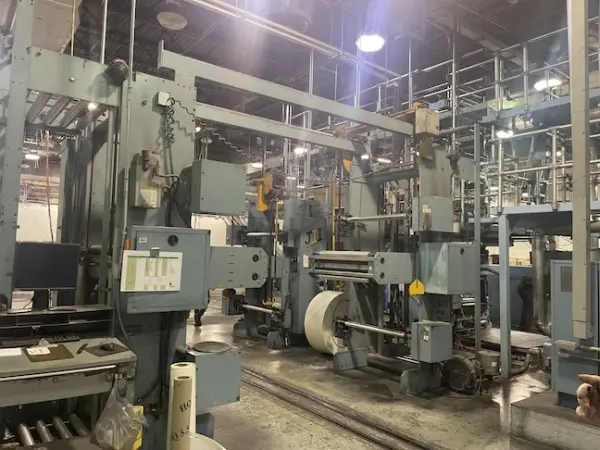

A.2 Jardis infeeds with web guides and remote access from press console

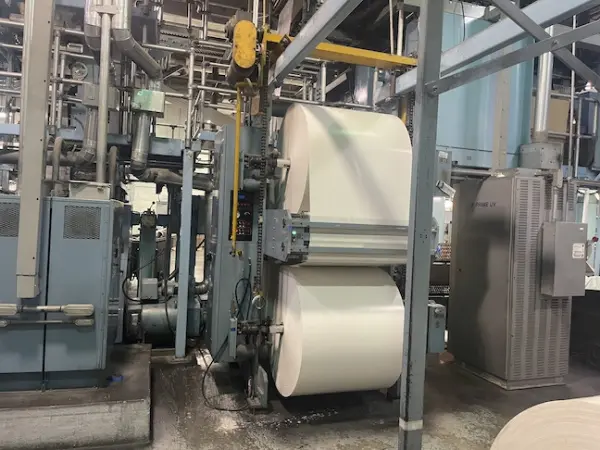

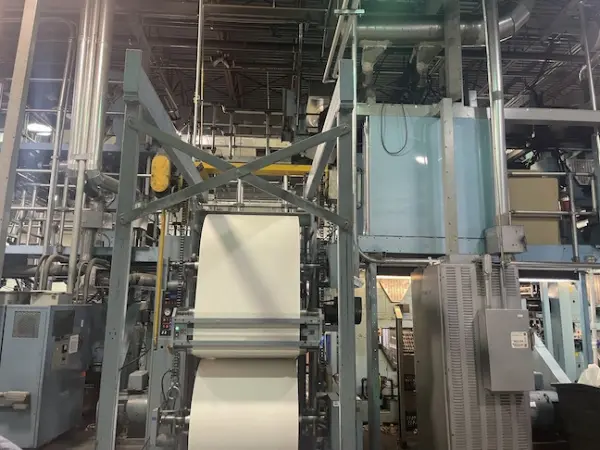

B.2 Jardis 45” zero speed splices with hoists
C.1 turn bar assembly to right angle web to tower
D.Both towers have prime UV system installed and operational
E.3rdlevel decking for easier access to Prime system
F.2 GMI remote inking consoles
G.4 Quad Tech Multi Cam cameras- mounted

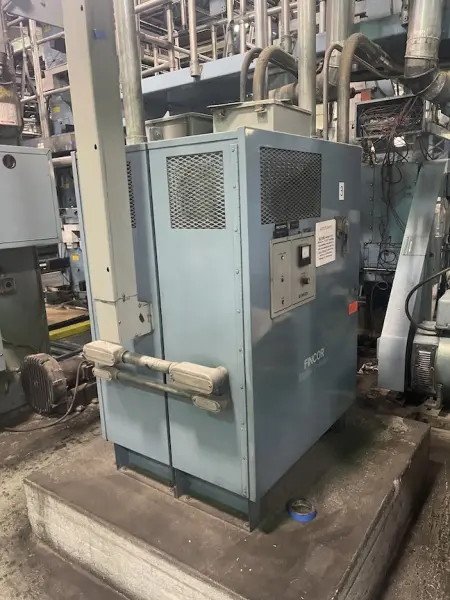

H.1 150hp Fincor drive-with reverse
I.1 stepdown pedestal with clutch- used to align 440s to 430s
J.1 Return water pump

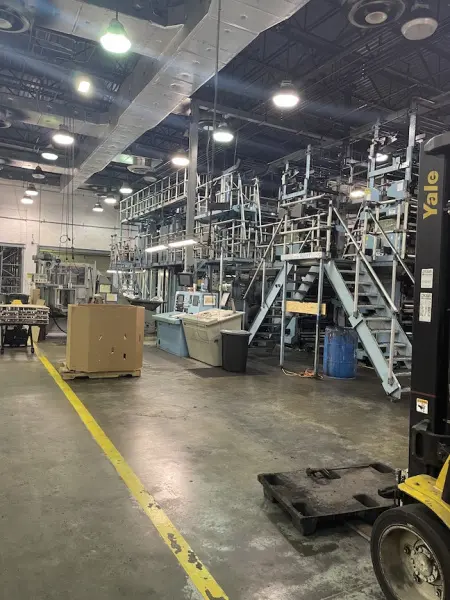

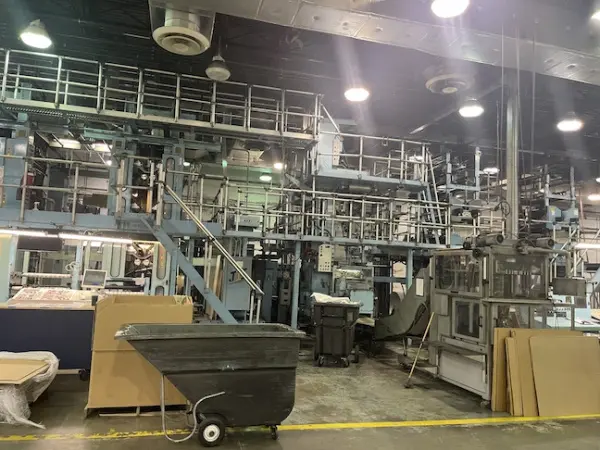

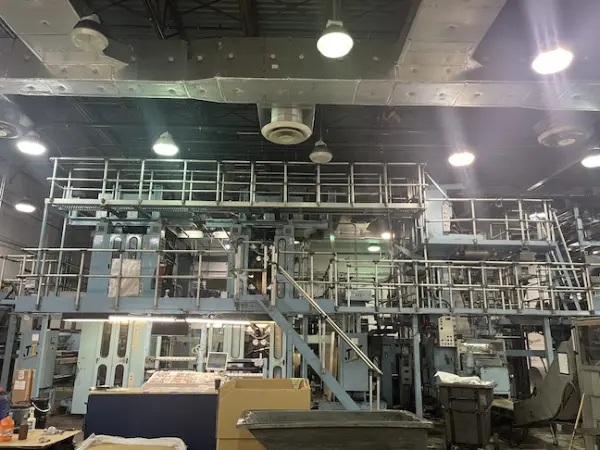

K.All decking, stair cases and ladders
L.Sonic web break detectors

2 Folder #1-1035 folder with upper former and ¼ folder. 72 degree board

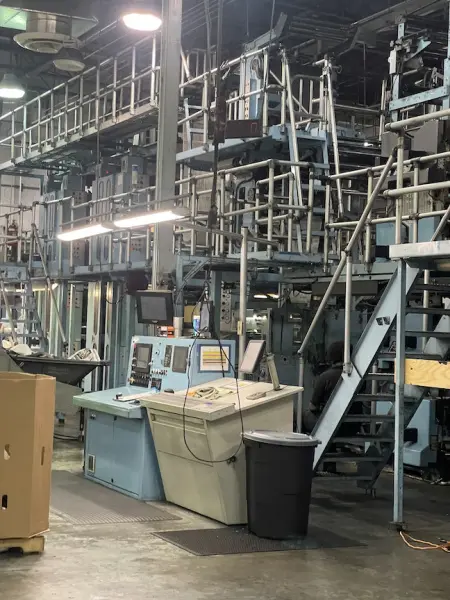

A.Press console with touch screen auto sequence startup and shut down
B.RMS register touchscreen
C.RGS register touch screen
D.2 Prime UV touch screens and operational computers
E.Two 125HP Fincor drives

3.2-430 4/highs
a.2 towers 430 with GMI remote inking and brush dampening
A.2 Jardis 45’ splicers with hoists
B.2 Jardis turnbars
C.2 GMI remote inking consoles
D.1 return water pump
E.4 Quad Tech Multi Cam cameras-mounted
F.Sonic web break detectors

4.Nela plate bender
5.Prisco automix water station
6.1 - Spare double Jardis turn bar and 2- spare Jardis 45” splicers with hoist
7.Spare 1035 Folder #2- with ¼ folder
