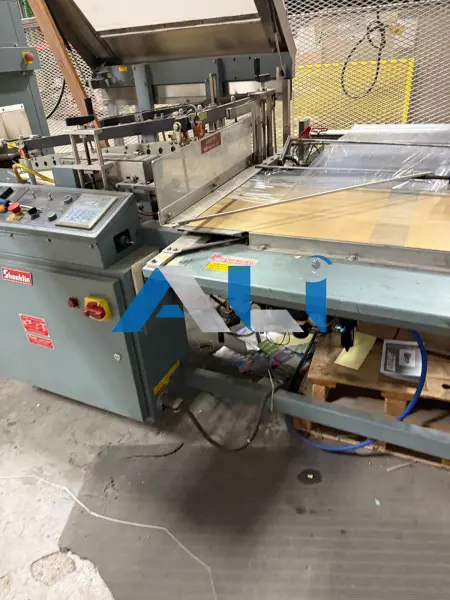

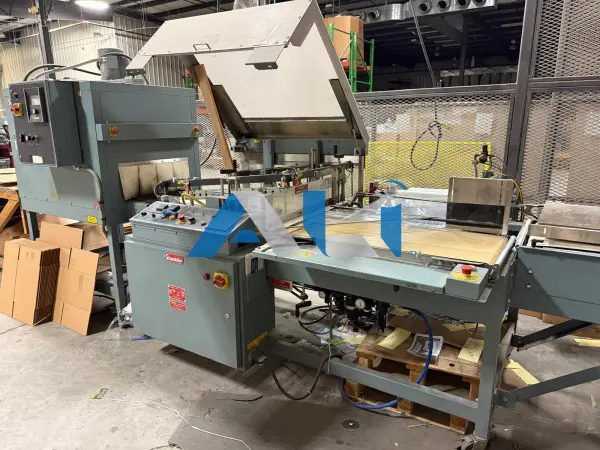

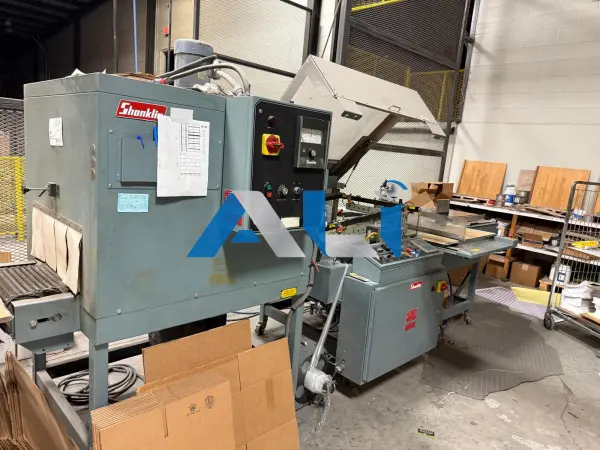

Shanklin A27A Heat Sealer Shanklin T7XL Tunnel

ALI Reference #: 106128


Shanklin A27A Heat Sealer Shanklin T7XL Tunnel

This combination of Heat Sealer and Tunnel is a great set for finishing a product. Yet another great offering from Asset Liqudity's bindery and offset printing equipment
Details:

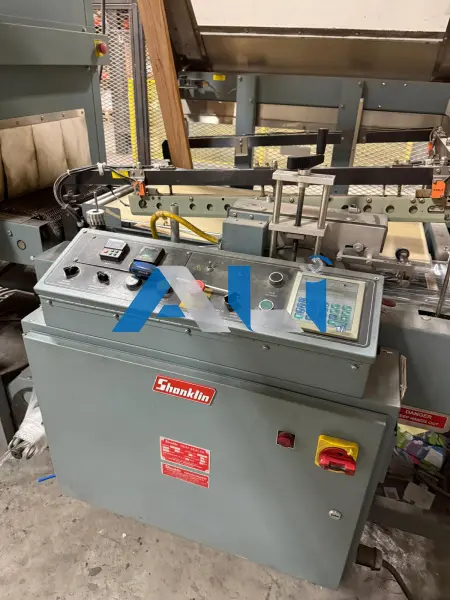

Shanklin A27A
  • SEALING SIZE: 21″W x 33″L
  • MAX. PRODUCT HEIGHT: 8″
  • MIN. PRODUCT LENGTH: 4″ Standard
  • 2 3/4″ with optional closing conveyor
  • MAX. PRODUCT LENGTH: 31″
  • MAX. FILM WIDTH (FOLDED): 30″
  • MAX. FILM WIDTH (FLAT): 44″ with compact centerfolder
  • PACKAGING SPEEDS: Up to 35 packages per minute (standard)
  • POWER: 230V, 15 Amps, 60 HZ, 1 phase
  • COMPRESSED AIR: 0.5 C.F.M. free air at 60 ps

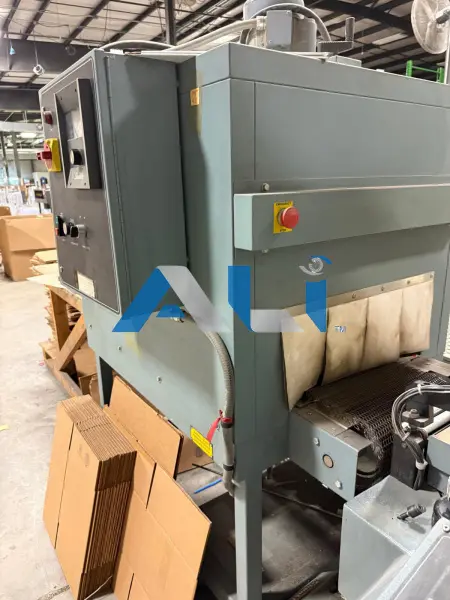

Shanklin T7XL
  • Tunnel Passage Dimensions
  • Length: 42” / 1066.8 mm
  • Width: 22” / 558 mm
  • Height: 8 3/4″ / 222.25 mm
  • Machine Dimensions
  • Length: 58” / 1,473 mm
  • Width: 34.5″ / 876 mm
  • Height: 67” / 1,702 mm
  • Conveyor Height
  • Minimum: 28″ / 711 mm
  • Maximum: 40″ / 1,016 mm
