2014 Agfa Azura C95

ALI Reference #: 105652

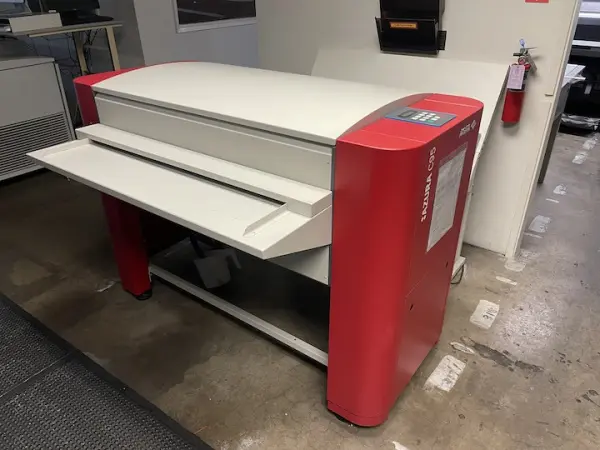

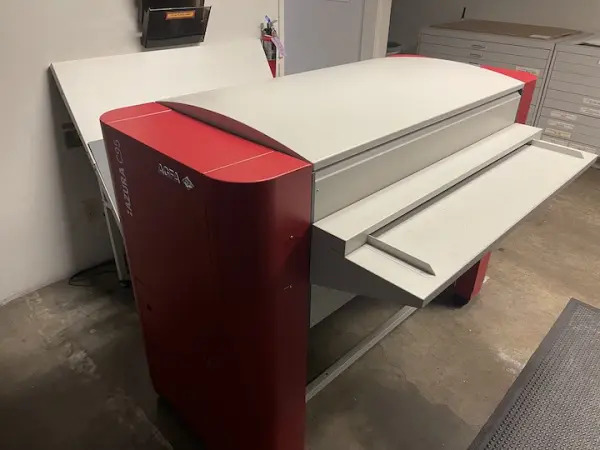

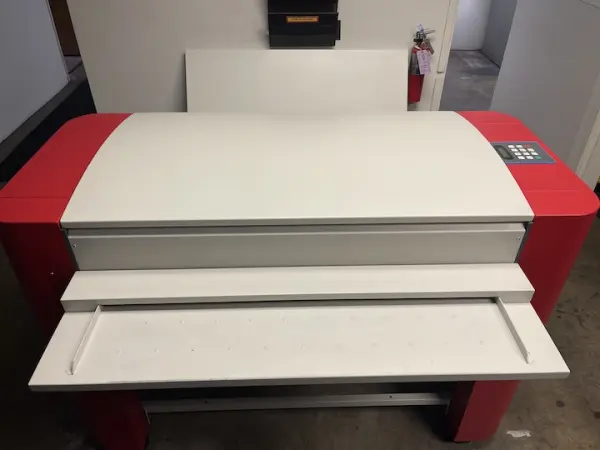

2014 Agfa Azura C95

Great addition to a prepress section for offset printing. This is another great offering from Asset Liquidity and our bindery and printing equipment.
Details:
  • Plates: Azura TS, Azura TU
  • Plate type: Chemistry-free thermal offset plates
  • Plate width, min.-max.: 200-950 mm (7.9-37.0”)
  • Plate length, min.: 310 mm (11.8”)
  • Plate thickness, min.-max.: 0.15–0.30 mm (0.006-0.012”)
  • Platesetters (Agfa): Avalon N8, N16

Performance
  • Plate speed: 60 cm/min (23.6”/min, fixed)
  • Plate throughput: 37 plates/h (landscape 745 x 605 mm) / 26 plates/h (portrait 1030 x 790 mm)
  • Plate volume: Up to 10,000 m²/year
  • Brush speed: 150 rpm (fixed)

Mechanical specifications
  • Dryer temperature: 55°C (131°F, not adjustable)
  • Noise emission – Max.< 70 dB

Physical specifications
  • Dimensions (width, length, height): 1500  x 2050 x 1050-1100 mm (59.0 x 81.0 x 41.5-43.5”)
  • Uncrated weight: 180 kg (397 lb)

Electrical specifications
  • US: Single phase 2W + PE 208 – 230V / 6 Amps, 50/60Hz
  • Power consumption US: 1350 Watt-hour
