2020 Helix UV Ink Jet System

ALI Reference #: 105691

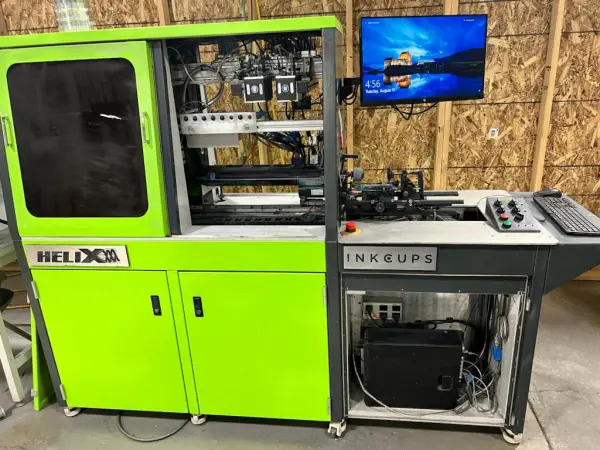

2020 Helix UV Ink Jet System

This machine is a cylinder can printer. This is another great offering from Asset Liquidity's digital printing equipment.
Details:
HELIX Industrial UV Ink Jet System

Standard Features:

  • Prints cylinders and tapers

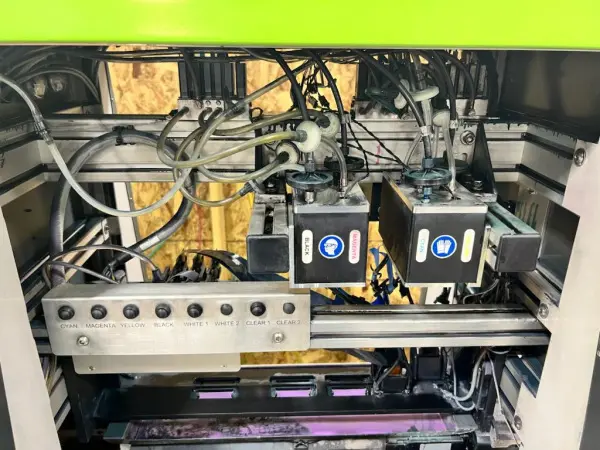

  • Ink palette: cyan, magenta, yellow, black, white

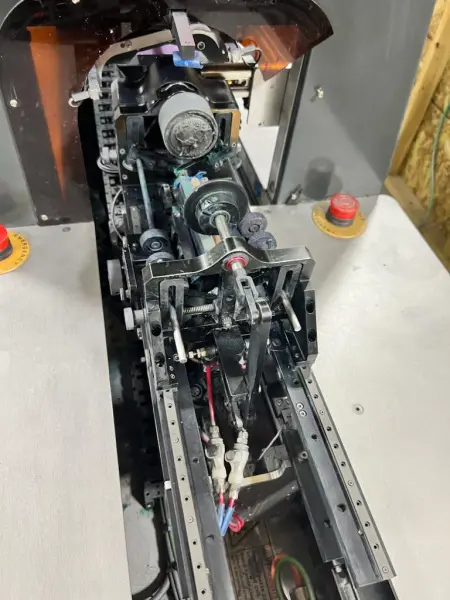

  • Servo driven, quick change tooling fixture
  • Programmable tooling tilt
  • Automatic height adjust
  • White sub-tank recirculating system

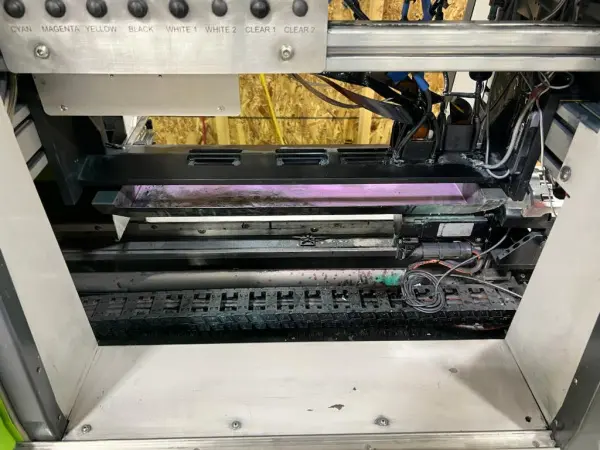

  • 120mm wide 8W, UV curing unit

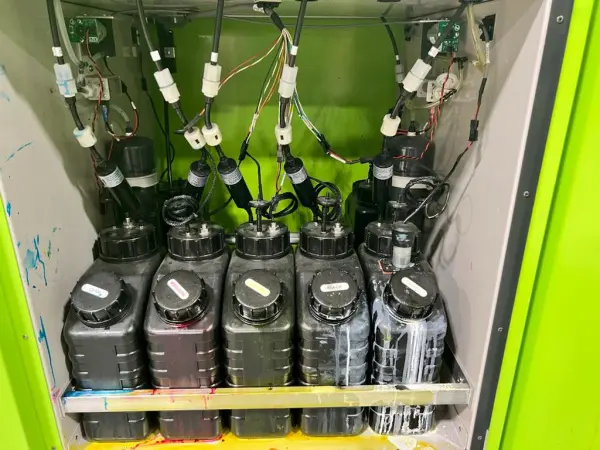

  • Bulk ink system
  • High opacity white
  • (2) Drinkware tooling kits

Software/Hardware Features:

  • Industrial computer system
  • Helix software package
  • Onyx RIP
  • New part teach feature
  • Automated workflow to print one-off
  • ·       Variable data & barcode scanning
  • Back-up and restore feature
  • Ink “spit” feature
  • Password protection
  • Helix production reporting

Standard Limits:

  • Part diameter: 2.0”-4.5” (up to 7° angle) or 2.0"-3.9" (up to 8.5° angle)
  • Cylinder length: 3.0”-12”
  • Print length: up to 4.25” (standard) up to 8.66" (with an additional UV lamp)
  • Maximum resolution: 1200dpi x 1200dpi
